Van Weelden Royal Overdrive V2

Features

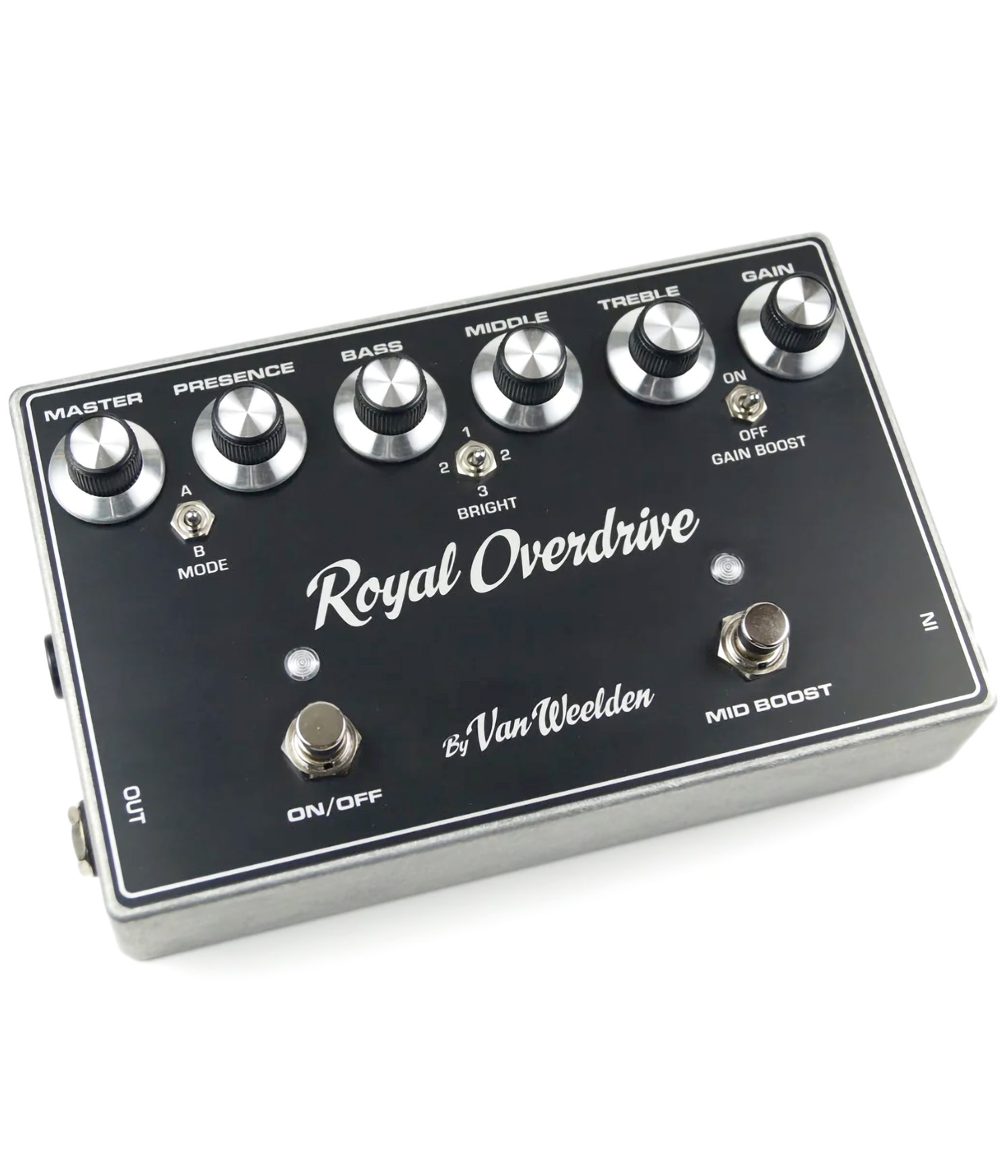

Van Weelden Royal Overdrive V2

Never before has a solid state overdrive pedal been so close in capturing the sound and dynamic behaviour of real tube amplifier circuits. Generally guitar players are musically inspired by the sound of well-designed tube amplifiers in terms of richness in harmonics, articulating, touch responsive, compression but still powerful tone and not altering the unique characteristics of your guitar. The Royal Overdrive features a combination of all these key tube sound aspects. Like good wine designing a new circuit takes some time to “age” (to become mature). That is why it took Van Weelden 4 years to complete this unit for you. The Royal Overdrive offers a wide range of overdrive tones for any style using either passive pickups (humbucking, single coil) or active pickups. Furthermore it features a more complete tone shaping network with individual tone controls. This architecture makes the Royal Overdrive a more complete preamp that has versatility to be combined with any guitar amplifier beyond that of the more classic Overdrive pedals.

Royal Overdrive V2 new features:

• Lower power consumption
• New and improved metal Switchcraft jacks instead of PCB mounted jack
• Lighter and more compact
• Faster on/off switching
• Sound is as great as the original Royal Overdrive!

SPECIFICATIONS

• Input impedance 1M Ohm
• Output Impedance: 2.5K Ohm
• DC Adapter outer plug dimension: Ø 5,5mm x Ø 2,1mm – Polarity: inner pin is negative and the outside of the plug positive
• High headroom buffered bypass mode
• Weight: 0,784 Kg - lbs 1.73
• Dimensions (W/D/H): 7.4” x 4.72” x 2.13” (188 mm x 120 mm x 54 mm)

For best performance use a 18VDC @ 200mA isolated power supply.

Note: With improper power the unit will probably just switch off or lights can start blinking when certain modes are engaged.
