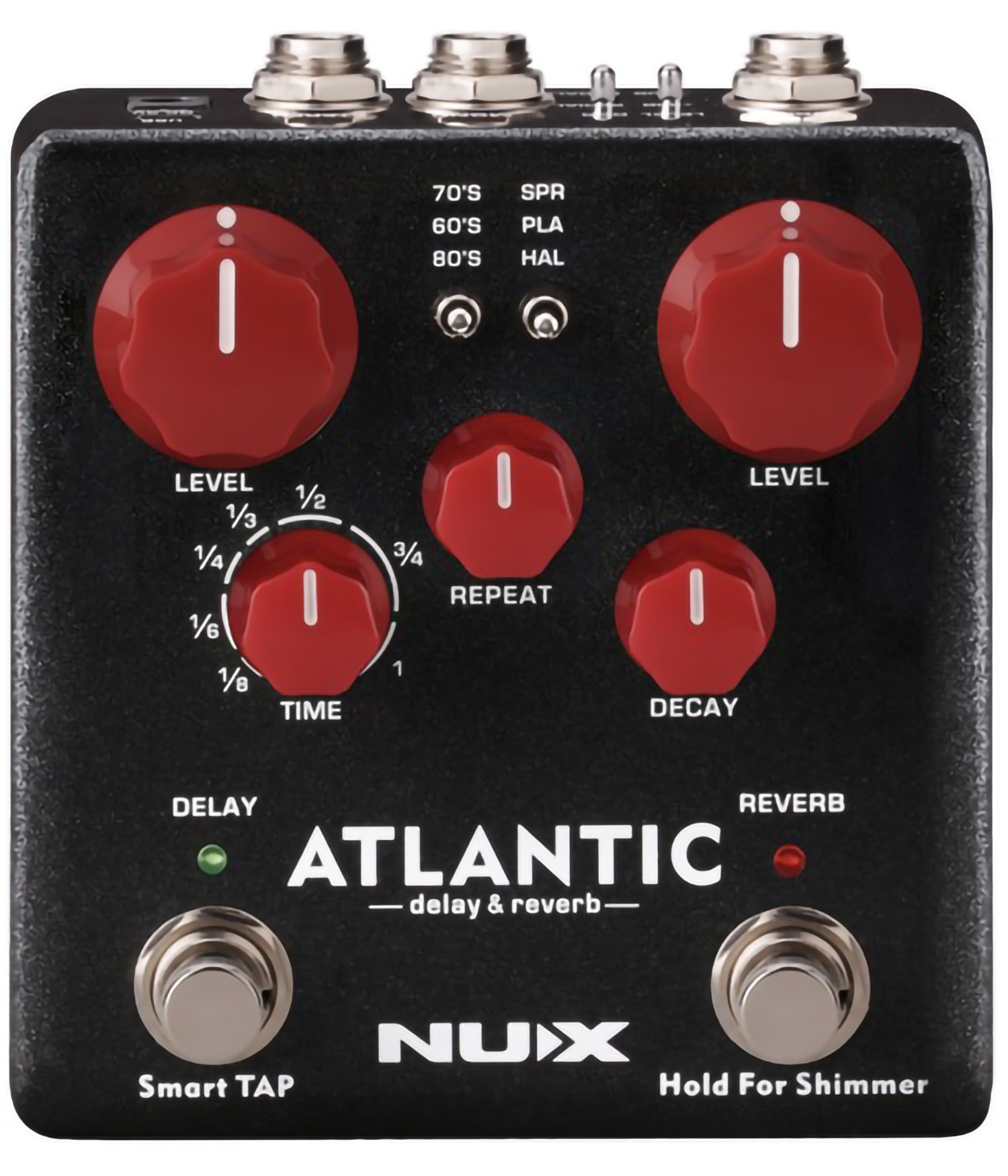

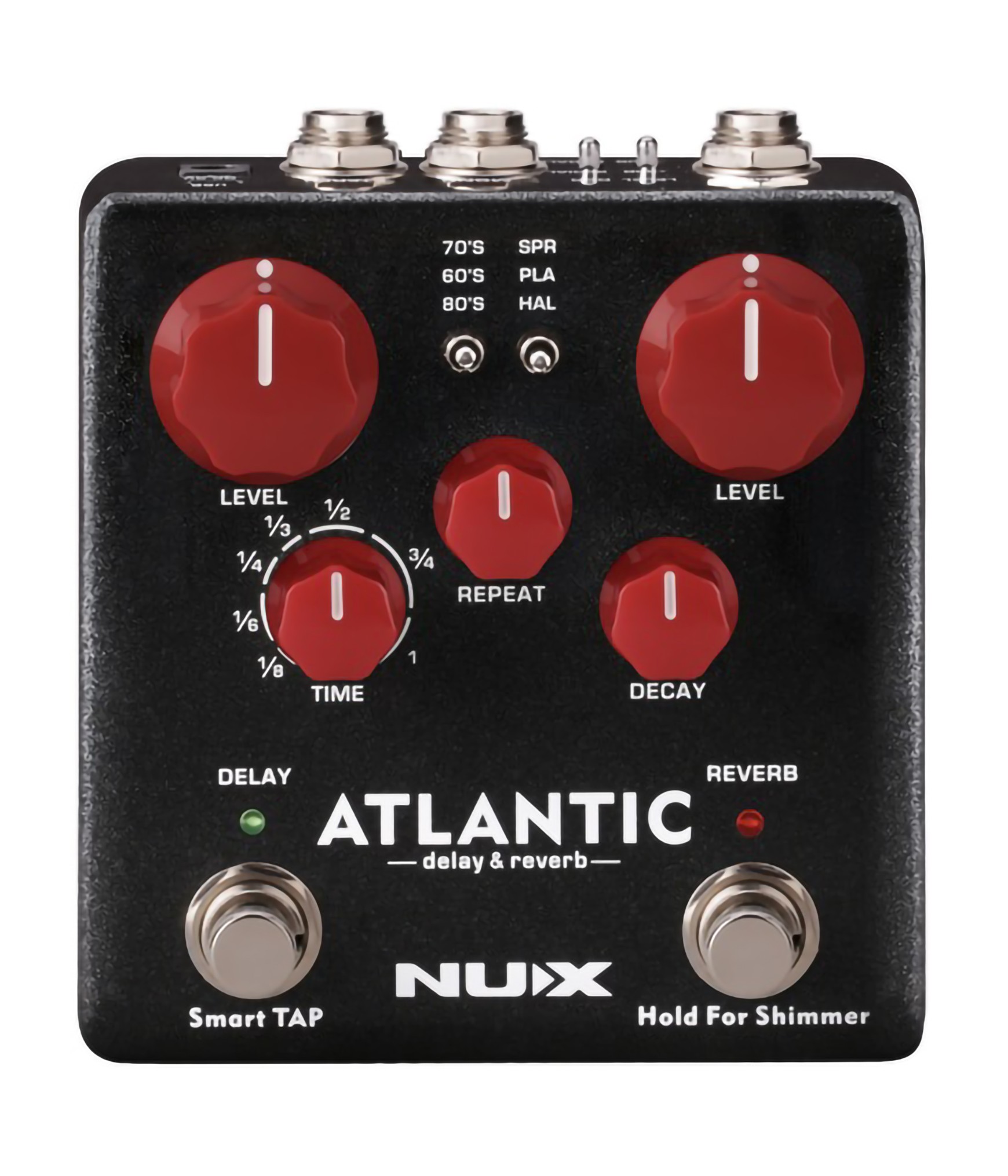

NUX Verdugo NOD-5 Atlantic Delay & Reverb

Features

NUX Verdugo NOD-5 Atlantic

Delay & Reverb Pedal

The NUX Atlantic pedal covers several Delay and Reverb types that are very representative in history: 60's Tape-Echo, 70's BBD Analog Delay, 80's Digital Delay, Spring Reverb, Plate Reverb and Hall Reverb. The latest algorithms with Core Image Technology from NUX offers you not only these classic effects, but also modern Shimmer and Freeze effects that inspire you to create dreamy musical ideas! Its patented Smart TAP function automatically understands if you want to turn on/off the delay or tap in the tempo.

Spring Reverb:

• Creates a polyphonic atmosphere filter that catches the sound reflections from deep down spring reverb tank. You can adjust the tank size with the level knob and set the reflection distance with the decay knob.

Plate Reverb & Shimmer:

• Straight and clean reflections inside a flat-walled room. You can control the room-size with the Level knob and then tweak the Delay bounce point with the Decay knob. If you hold down the Reverb switch, straight reflections will be heated and swirled throughout the inside of the room creating a Shimmer effect.

Hall Reverb:

• The sound of a well-designed hall. Whether the hall size is big or small, the reflections will be emitted by wall furniture. You can adjust the interior hall-size, from a small garage to a huge structure with the Level knob and increase or decrease the number of objects on the walls with the Decay knob. Less decay means more objects and faster reflection fading.

Features:

• Delay & reverb effects in a pedal
• 3 Delay modes: 70s analog, 60s tape and 80s digital
• Delay level, time and repeat
• Tap tempo with tap subdivision
• 3 Reverb modes: Spring, plate and hall
• Plate reverb with shimmering effect
• True bypass
• TRS input - effect loop connection via insert or Y cable
• Input level switch (-10 dB / + 4 dB)
• USB port for firmware updates
• Controls: Delay level - subdivision - repeat - reverb level - decay
• Switch: Delay mode (70's / 60's / 80's) - reverb mode (spring / plate / hall) - input level (-10dB / + 4dB) - D & R routing (serial / parallel)
• Effect on LED
  Bypass footswitch
• Connections: Input (6.3 mm stereo jack) - stereo output (2x 6.3 mm jack) - power supply connector (female
• connector 5.5 x 2.1 mm - negative pole inside)
• Power supply via 9 V DC power supply (not included, available under Article Nr. 409939)
• Dimensions (W x D x H): 115 x 105 x 57 mm
• Weight: 420 g

EAN 6936257206695
