Neural DSP Quad Cortex

The Most Powerful Floor Modeler For Guitar and Bass

With a total of 6 cores (4x SHARC+ and 2x ARM Cortex-A5 running at 500MHz each), this amount of processing capacity provides limitless sound design possibilities.

Capture, share and download your favorite rigs’ sounds. Equipped with our unique biomimetic AI technology, Quad Cortex can learn and replicate the sonic characteristics of any physical amplifier, overdrive, and cabinet with unprecedented accuracy.

Inside, more than 50 amps, 1000 cabs and 70 pedals serve as building blocks to create your favorite rigs. Download presets from the cloud for instant genre/artist inspiration (no computer required) or use Quad Cortex’s Neural Capture to take your favorite studio sounds with you on the go.


  • Unique neural capture network architecture enables the analysis and simulation of the dynamics and sound of other amplifiers
  • Integrated Wifi for sharing rig capture presets, backups and firmware updates
  • The integrated Superior Modeling Technology enables a constantly growing collection of algorithms with uncompromising sound quality
  • With custom rig captures from some of the best producers and sound designers
  • Very low latency and unparalleled routing flexibility

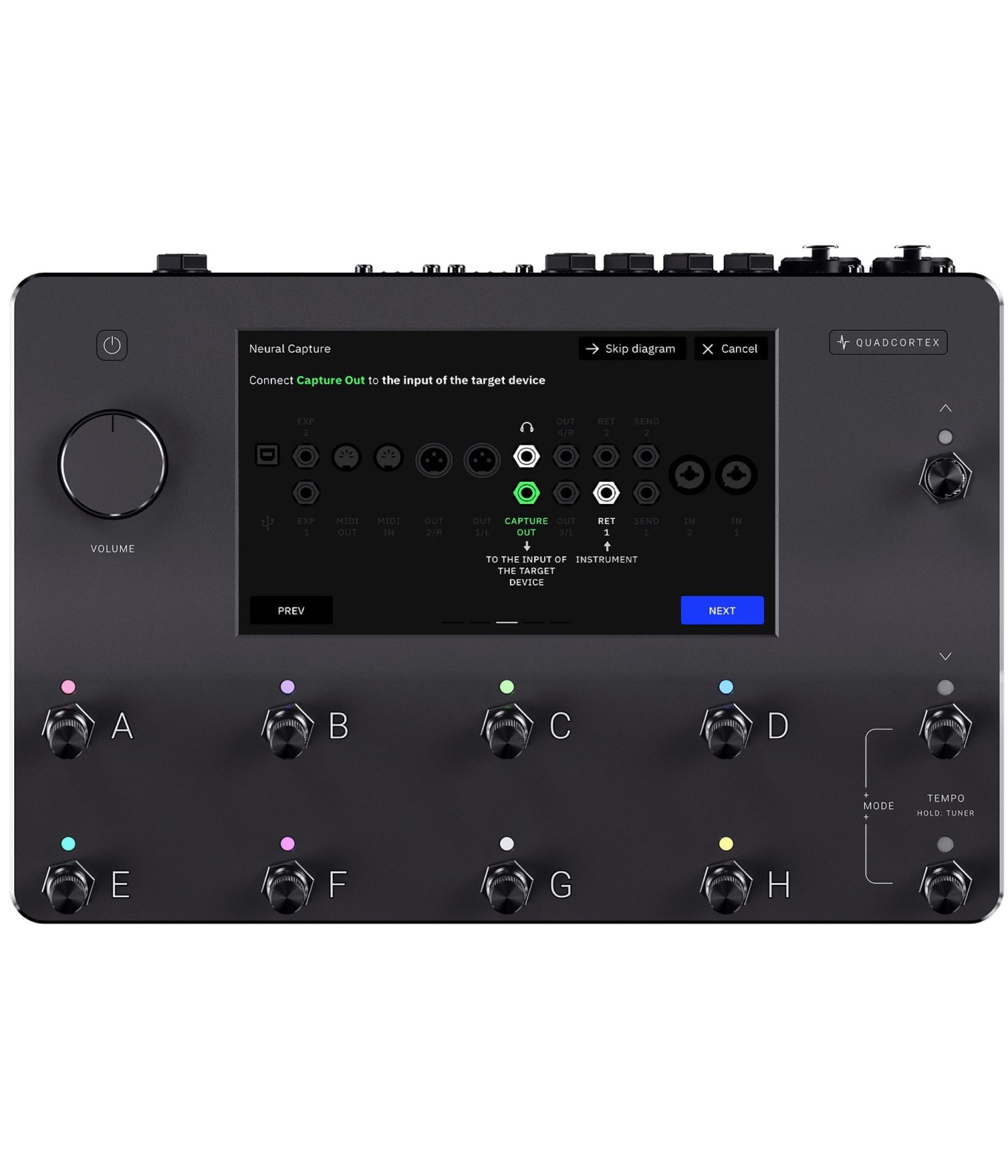

  • 7" Multi-touch display
  • Cabsim with over 1000 impulse responses
  • 11 Newly developed combination foot switches with rotary control function
  • Volume controls

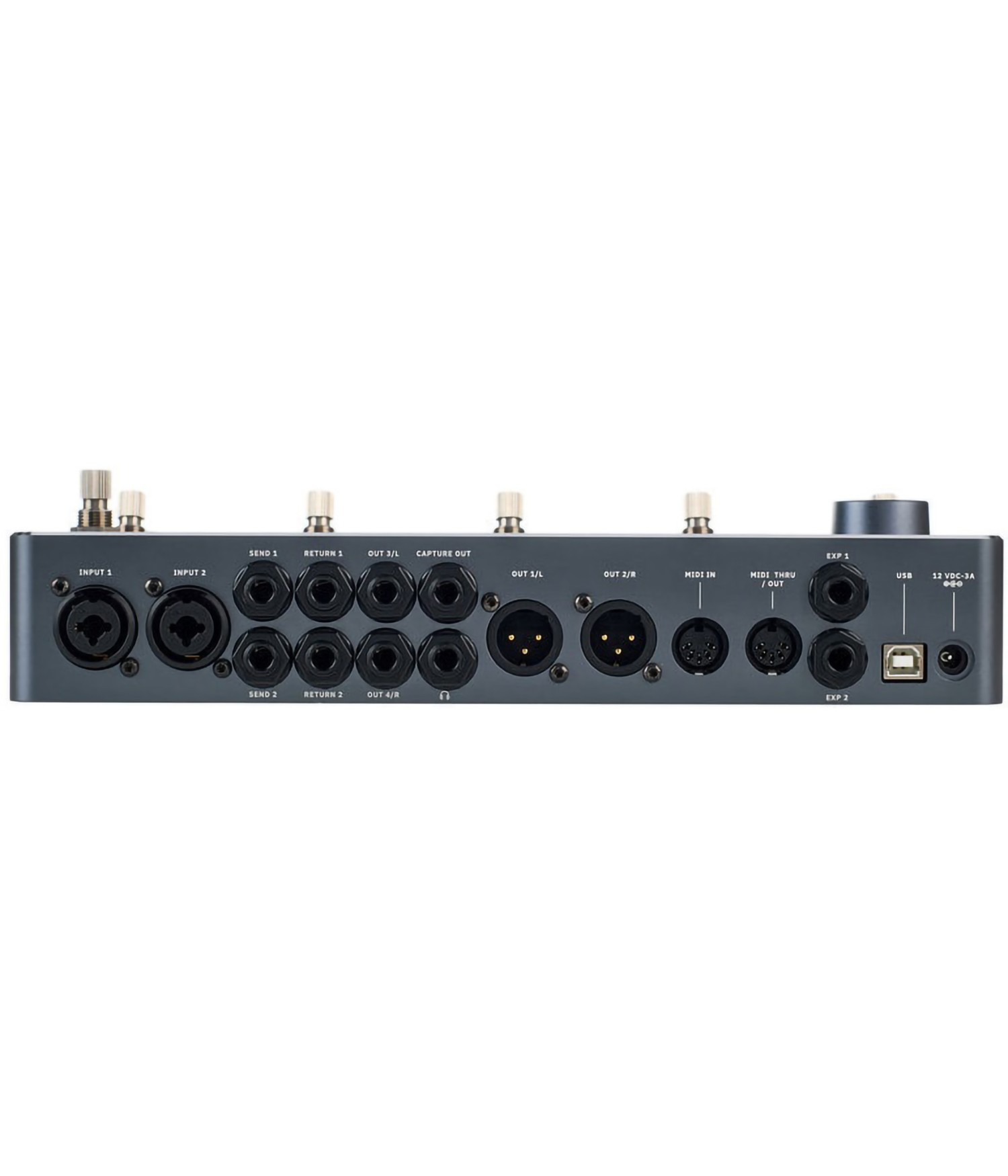

  • Input 1 & 2: Combo XLR / 6.3mm jack
  • FX Loop 1: 2x 6.3 mm jack
  • FX Loop 2: 2x 6.3 mm jack
  • Output 1 & 2: 2x XLR
  • Output 3 & 4: 2x 6.3 mm stereo jack
  • Headphone connection: 6.3 mm stereo jack
  • Expression 1 & 2: 2x 6.3 mm stereo jack
  • MIDI In & Thru / Ou
  • USB
  • Power supply: 2 V DC power adapter (included) barrel connector 5.5 x 2.1 mm, negative polarity inside
  • Dimensions (W x D x H): 290 x 191 x 48 mm
  • Weight: 1.6 kg

EAN 748367937415
