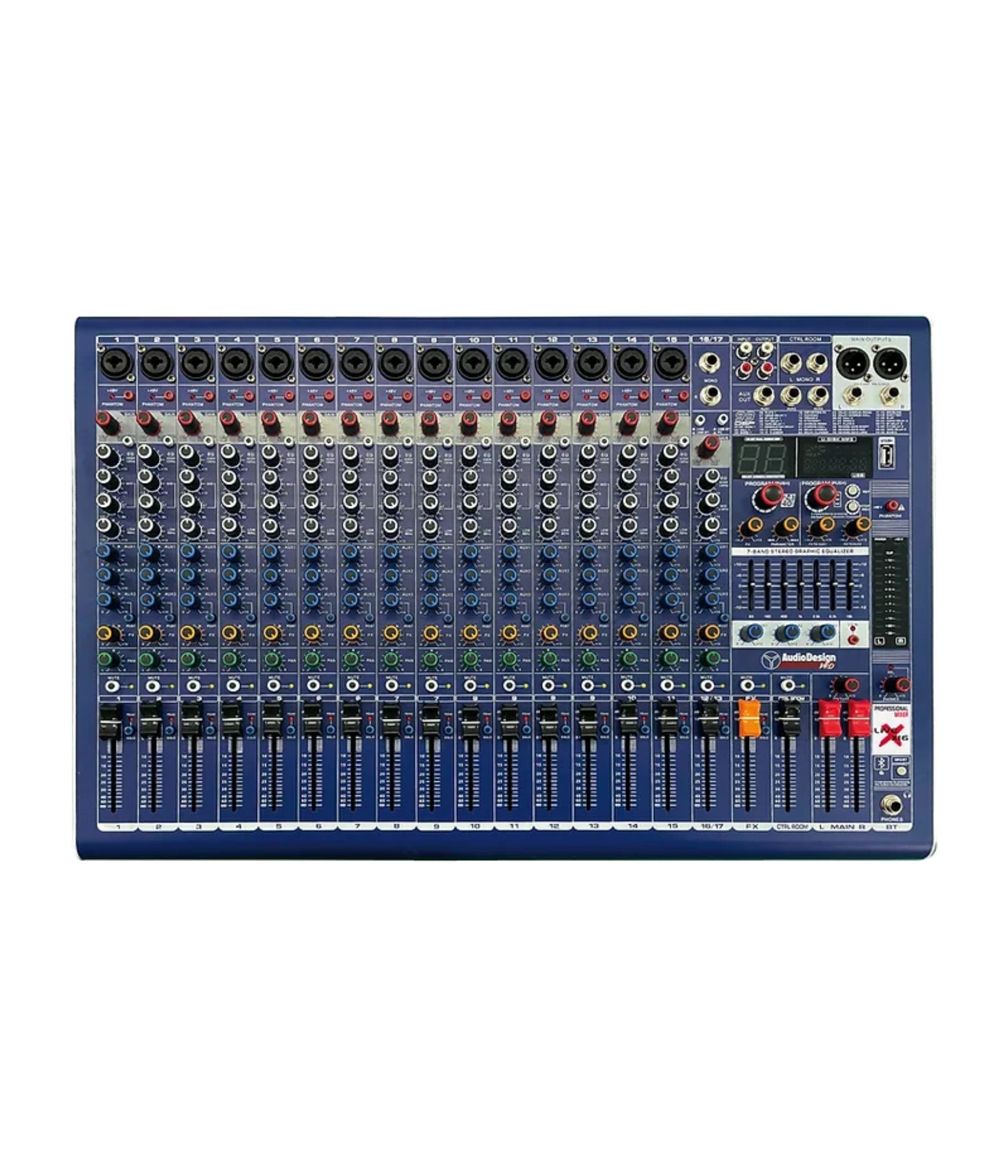

Audiodesign Pro Live X16

Features

Audiodesign Pro Live X16

17-Channel USB/BT Mixer with Effects and Parametric Mid-Frequency Control

Features:

• Mixer designed for Live needs
• 15 mono channels -1 stereo channel - USB/BT - 99 effects with DSP - parametric midrange control
• 1 USB / BT input with function activation switch
• 1 PC connection with USB type B
• Stereo recording (44.1 KHz 32 bit float) to Computer (USB type B output)
• 1 Stereo Aux In (RCA) input with dedicated volume control
• Phantom power supply with main and single Mic input switch
• Low cut at 75 Hz on Mic inputs 1 through 9
• Hi-Z impedance selector on inputs 10-11 (high impedance connection for guitar)
• Equalization +/- 15 dB (High 12 KHz Hi-Shelve -Low 80 Hz Low Shelve) on all inputs
• Equalization +/- 15 dB parametric on mids (150 Hz to 6 Khz) Mono Channels
• 3 AUX channels (pre or post fader) with adjustable overall output level
• Peak indicator on Mono and stereo inputs
• PFL function on each channel
• MUTE function on each channel
• Effects level adjustment on each input channel
• Effect level adjustment on main
• Multi effect DSP 99 effects
• Equalizer in mixer output, 7-band with switch to turn it on or off
• 12-segment LED Meter with peak memory
• 1 Main Stereo Output (XLR and balanced Jack)
• 3 Aux Outputs (Unbalanced Jack)
• 1 Stereo Rec Out (RCA)
• 1 Control Room Output (Unbalanced Jack)
• 1 Stereo Headphone Out (Stereo Jack) with level adjustment
• Dimensions WxDxH: 588x420x110 mm
• Weight: 7.4 kg

EAN 8014719038317
