NUX B-8 Professional Wireless System

Features

NUX B-8

2.4 GHZ Professional Wireless System

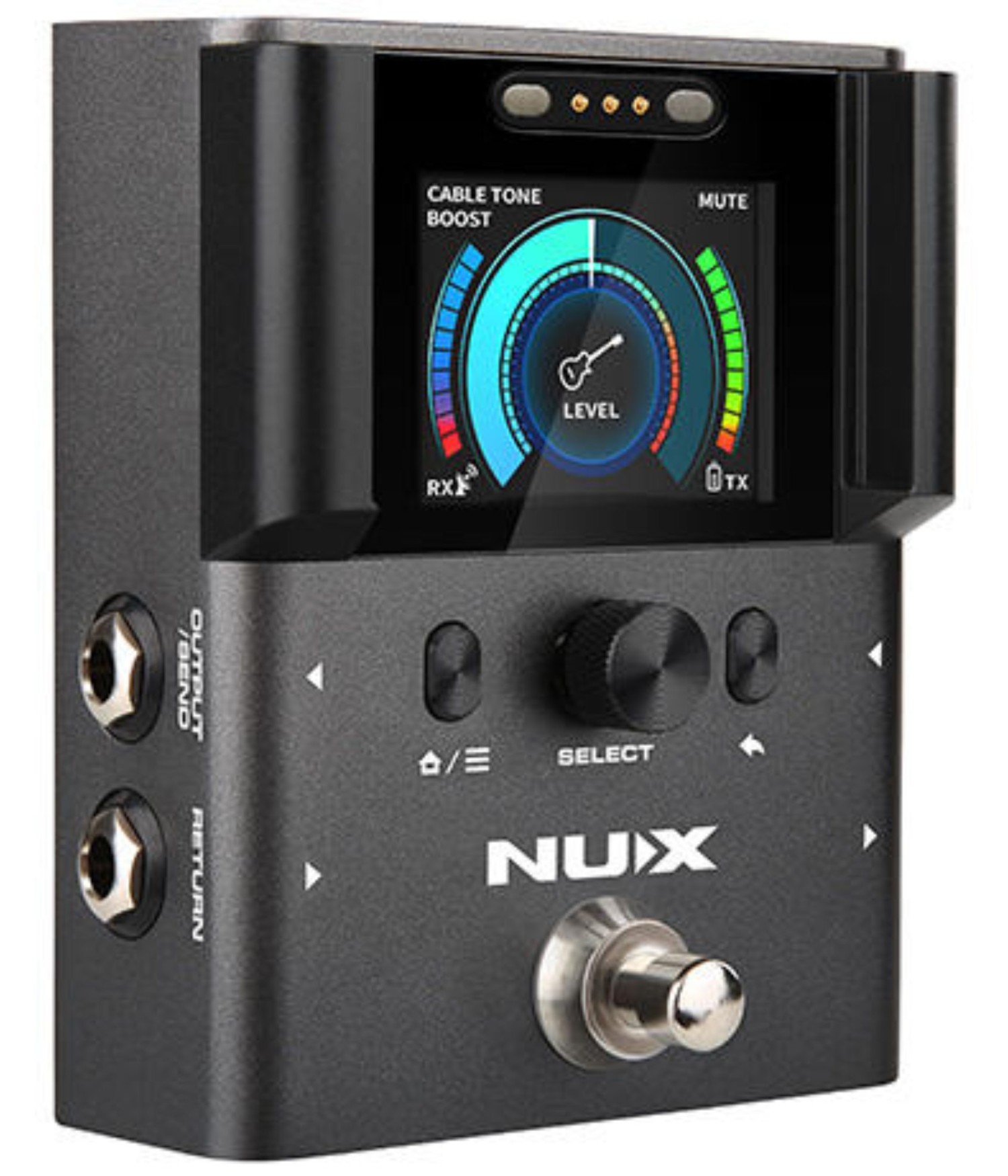

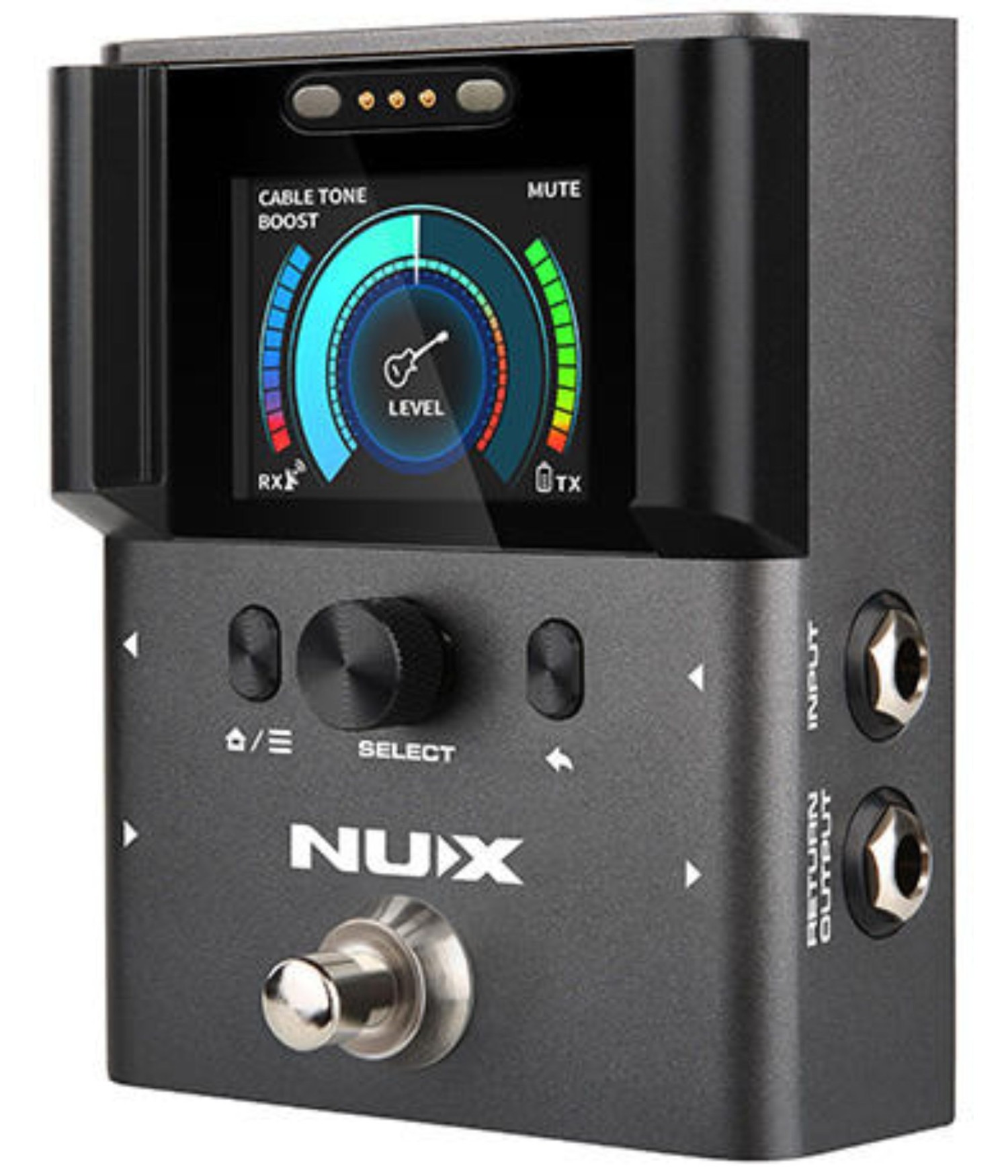

NUX B-8 is a redefined wireless system with automatic setup, interference-free 2.4 GHz transmission frequency and high-quality 24-bit, 48 kHz audio transmission. The signal transmission latency is only 2.5 ms,while the range is up to 50 meters (160 feet).

The user-friendly pairing system makes it easy to use: just turn on the TX&RX and pairing will be done in a couple of seconds. Each wireless set has a unique pairing algorithm that automatically detects each other and configures their IDs.

For best performance, check for nearby WI-FI devices and set the B-8 transmission to the best location

It also features a built-in booster and a well-designed digital tuner with chromatic, standard guitar, compensated guitar and bass tuning modes, which are very useful for musicians performing on stage.

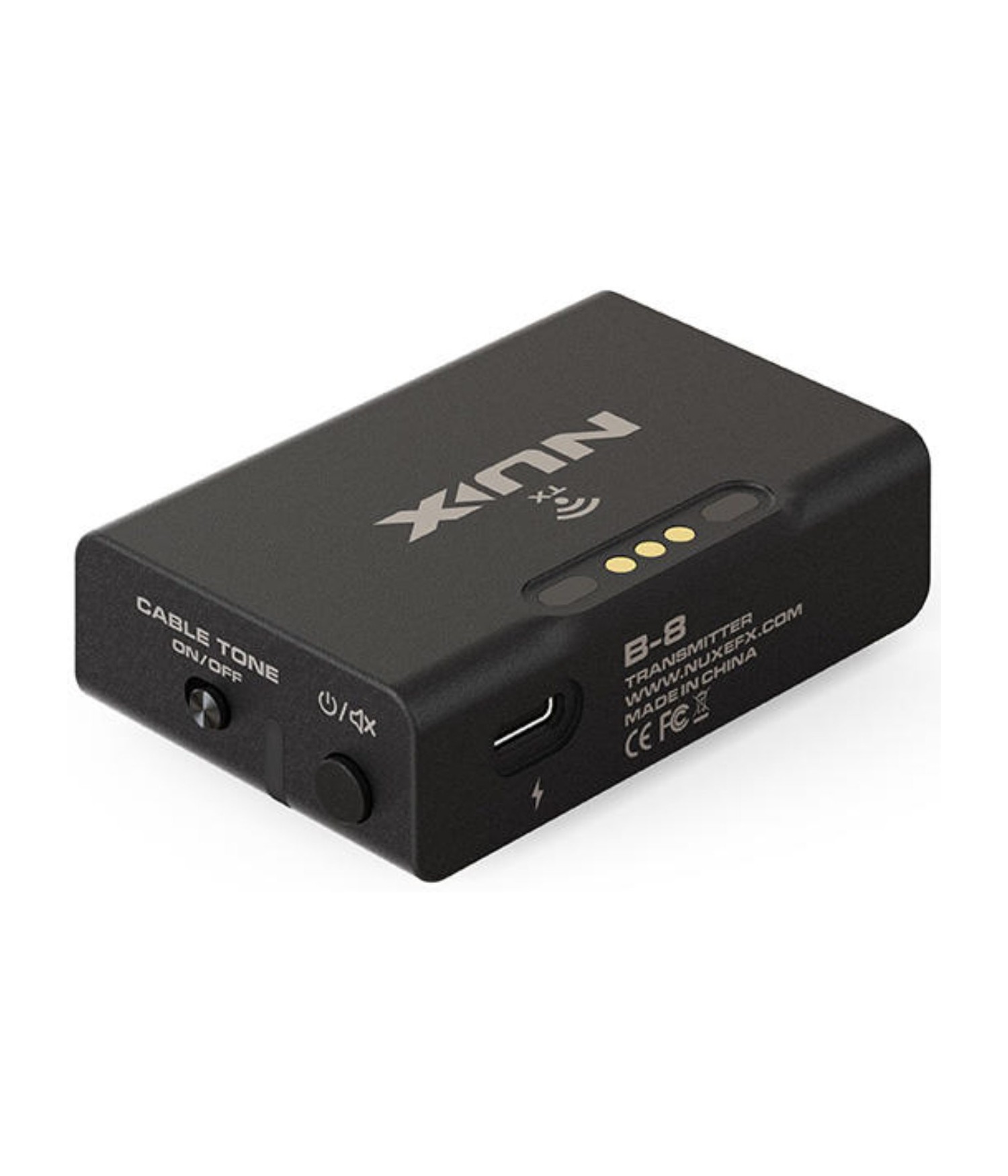

The TX roception system is equipped with a large lithium-ion battery, and its battery life is 6.5 hours. To recharge it, you can easily rest the TX on top of the RX.

Another very interesting feature is that the TX is equipped with a cable sound simulation, normally used by some guitarists to get a warmer sound. If desired, you can press the switch and activate it.

Send/return for routing: With the 1/4" OUTPUT/SEND jack, you can loop effects pedals to RX with this jack for SEND (send signal to effects pedals) and loop effects pedals to RX with the 1/4" RETURN jack for RETURN (return signal from effects pedals to RX).

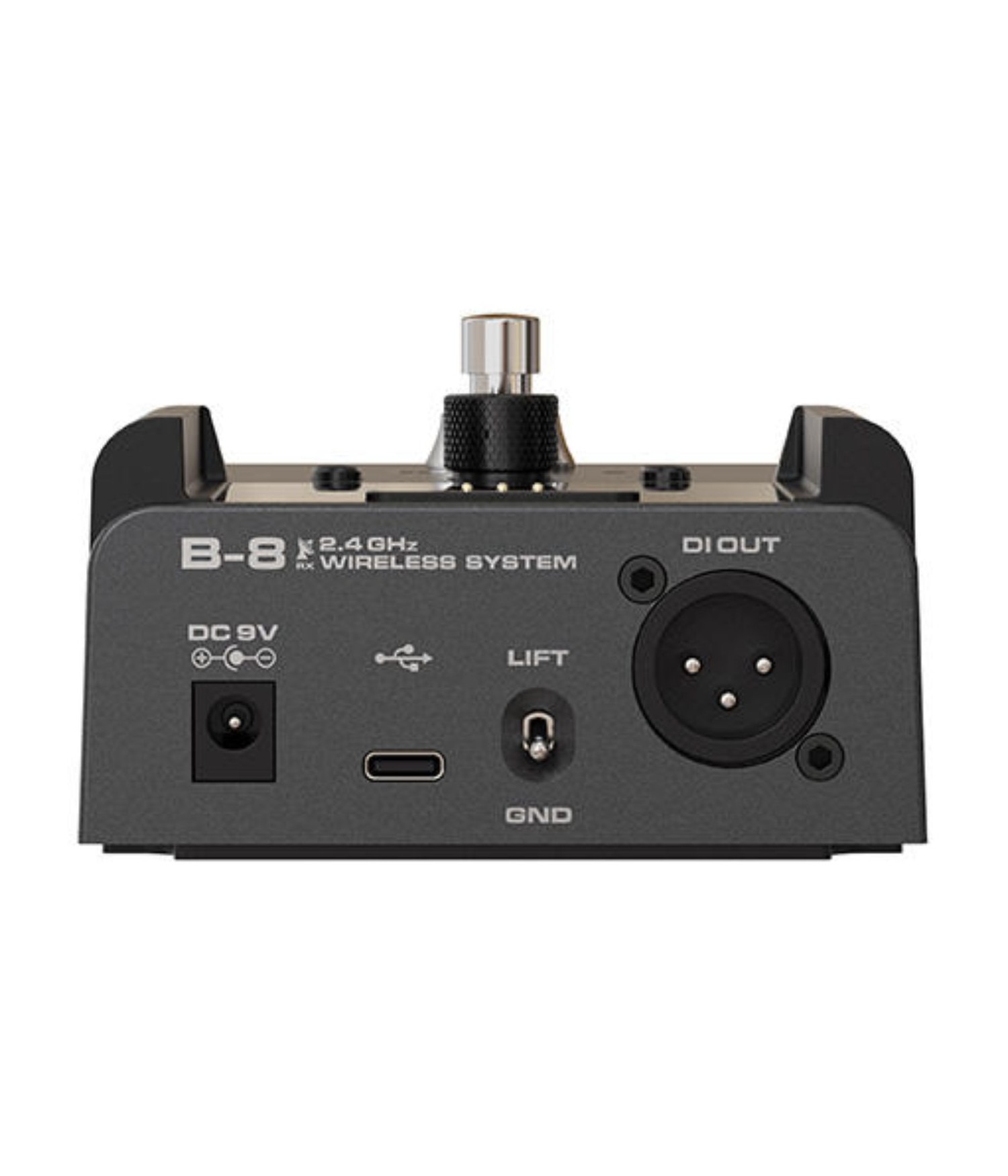

Also, with the DI OUT jack, you can connect the RX to an amplifier, mixer, or audio interface with a balanced cable.


Features in Brief

• Suitable for guitar, bass and various instruments
• Automatic set up and easy frequency pairing
• High-quality 2.4 GHz transmission
• Long distance and low latency
• Stable mode for interference elimination
• Built-in booster and tuner
• Long battery life
• Cable function for warmer, more natural timbre
• Send/return to manage routing of your effects
• Direct output to mixer
• Audio quality: 24bit/48kHz
• Frequency response: 20Hz-20kHz
• Latency: 2.5ms (best performance setting) - 8.7ms (safe mode)
• Input impedance: 1 MO
• Maximum input level: 1 kHz at 1% THD +6.2 dBV (5.78 Vp-p)
• THD+N: 0.01% 1kHz, typical
• Dynamic range: 122 dB, A-weighted (OUTPUT/SEND)
• Output level adjustment range: mute -64dB~0dB
• Built-in battery capacity: 3.7 V/500 mAh rechargeable Li-polymer (transmitter)
• TX battery life: up to 6.5 hours
• Power requirements: 7V to 12V DC, 500mA min, negative tip power supplies (receiver)
• Operating range: Up to 50m
• TX Dimensions: 72.5mm*49.3mm*23mm (L*W*H)
• TX weight: 63 g
• RX Dimensions: 122*95*60mm (L*W*H)
• RX Weight: 500g

Code: B-8

EAN 6936257209474
