Palmer PAN04A Active 2 Channels

Features

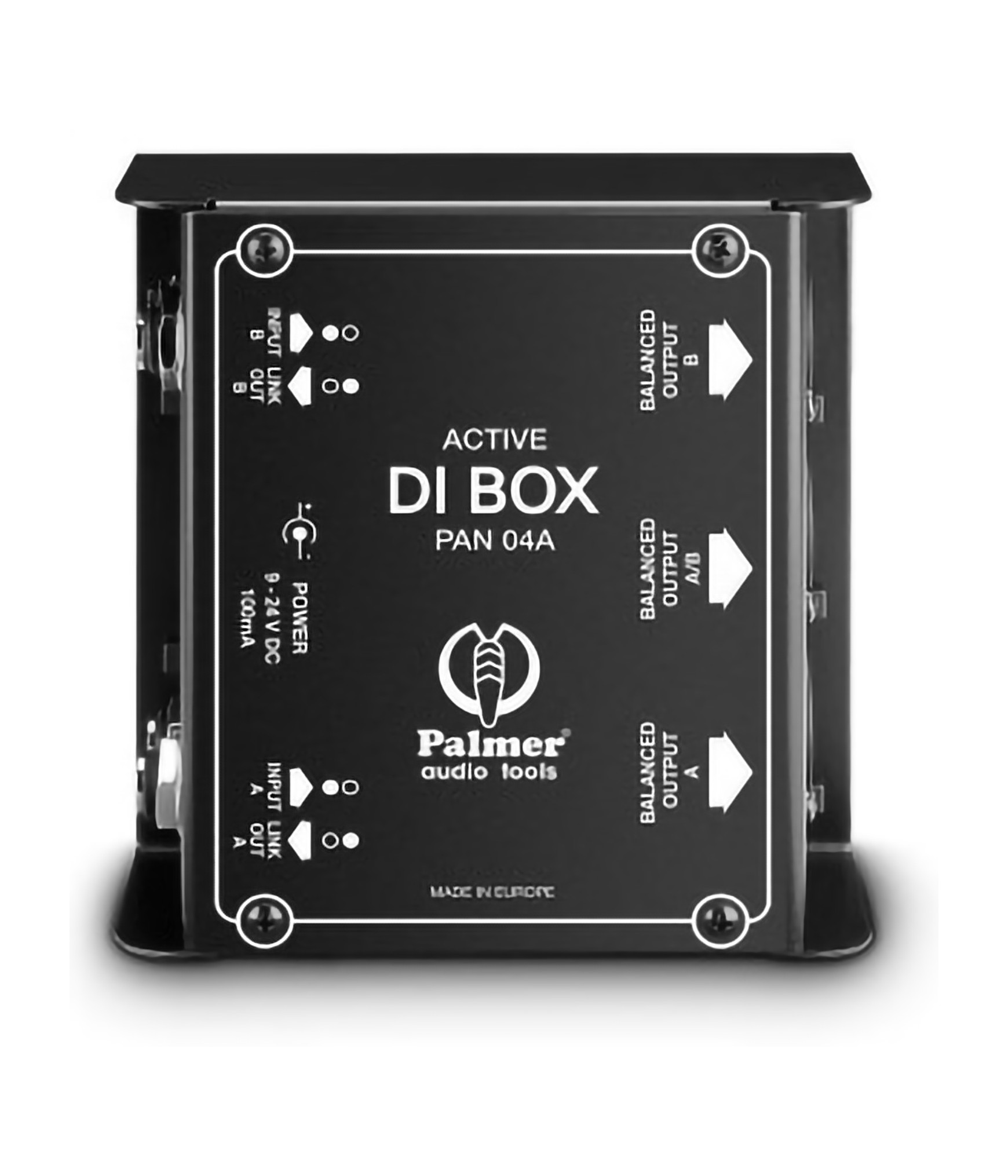

Palmer PAN04A

Active 2-Channel DI Box

The Palmer PAN04A is 2-channel DI box for feeding asymmetrical and high impedance electric instrument signals into a mixing desk’s microphone inputs. It delivers a transformer balanced, low impedance signal to the outputs and eliminates mains hum and interference caused by ground loops. The active switch leaves the frequency response unaffected and achieves a high dynamic range. In addition to 6.35 mm direct outputs and -30 dB switchable input attenuation, the DI box also features a mono output that sums both channels. The PAN04A is designed to be exceptionally robust and is suitable for both stage and studio. It can be powered with 9 to 24 V DC mains adapters or phantom power when two outputs are connected to a mixer.

Features:

• Active 2-channel DI box with premium balancing transformers
• 10–40 kHz frequency response, high dynamic response
• -30 dB input attenuation, switchable
• Ground lift switch for each output
• Balanced mono summed output
• Can be powered with 9 to 24 V DC mains adapters or phantom power
• Dimensions (W x H x D): 116 x 110 x 45 mm
• Weight: 0.47 k

EAN 449521218002
