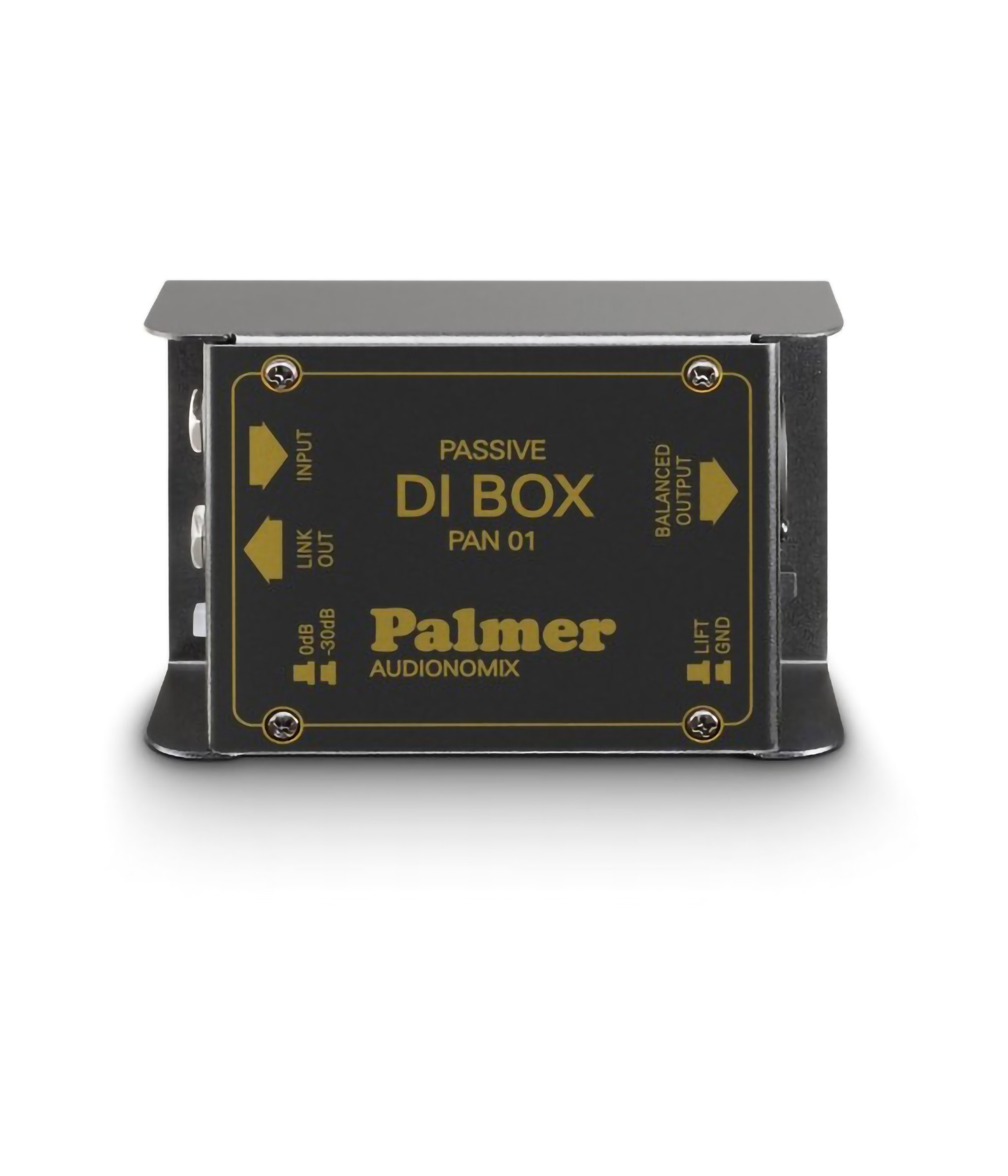

Palmer Pro Pan 01 Passive DI-Box

Palmer Audio

Ref PPAN01
Palmer Pro Pan 01 Passive DI-Box
€40.16
€36.15 Save 10%

Features

Palmer PAN 01

Passive DI Box Direct Injection

Passive DI-Box equipped with jack input with parallel output for loop through connection of the signal. Balanced XLR output to transformer. Switchable input sensitivity. Line signal and speaker levels can be processed

Features:

  • Input: 6.3mm jack
  • Max input level: +54dBu
  • Input impedance (@ 60 Hz): 60k Ohm
  • Input attenuation: 0/-30db
  • Number of outputs: 1
  • Number of THRU outputs per channel: 1
  • Output connections: Jack 6,3mm, XLR
  • Maximum output level: +6 dBu
  • Output impedance: 600 Ohms
  • Frequency response: 20hz - 20khz
  • Balanced to transformer: Yes
  • Transmission ratio (Ratio): 10:1
  • Controls: Attenuator, Ground-Lift
  • Material: Steel sheet
  • Surface: Black powder coated
  • Dimensions: 110 x 73 x 42 mm
  • 5 Year warranty from manufacturer

EAN 4049521048951
