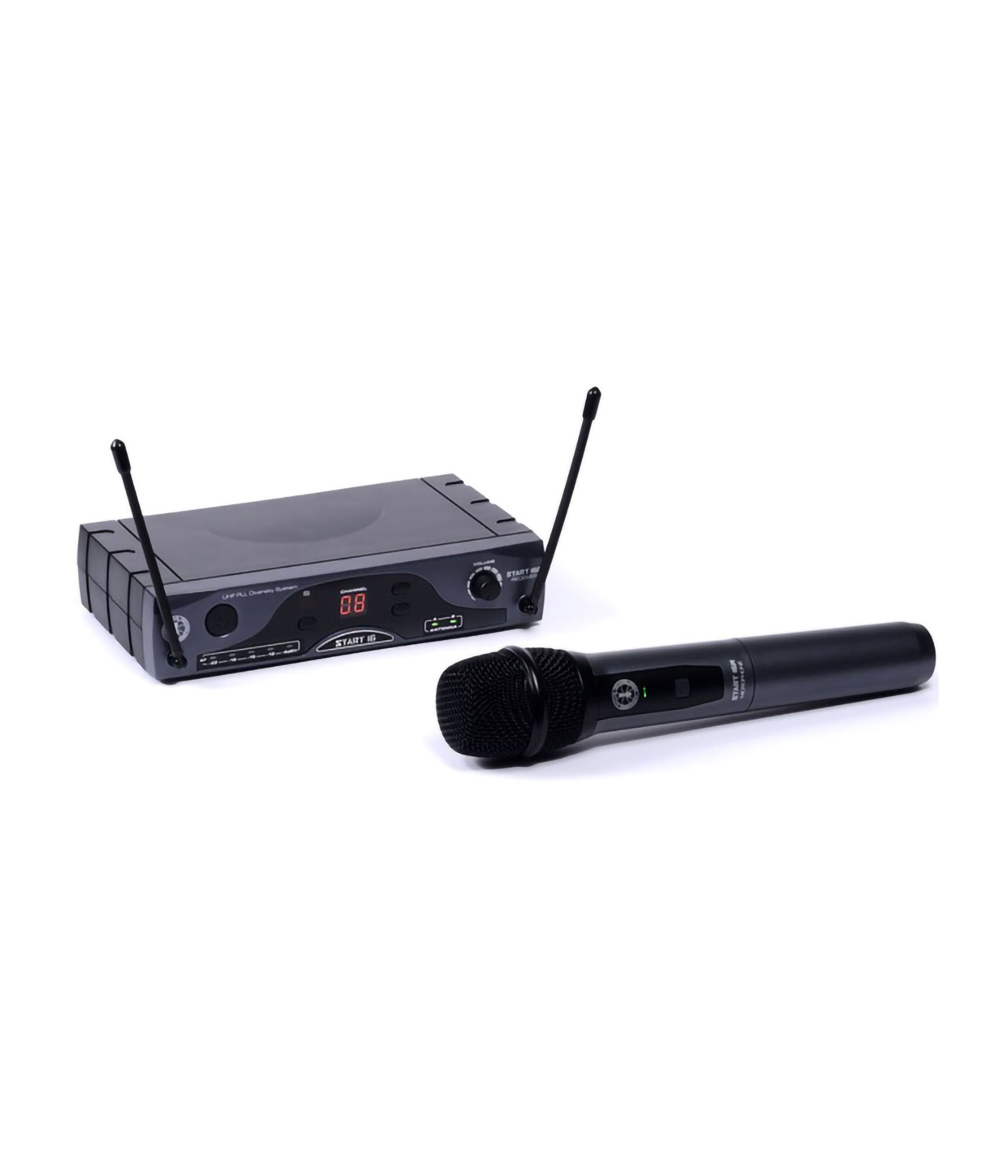

ANT START16 HDM B7 Radio Microphone HandHeld
Ant
Features
ANT START16 HDM B7
Wireless Handheld Diversity In UHF 16-channel 863-865MHz wireless microphone
The START 16 wireless microphone system operates in the FREE frequency range 823-832 (B6) Mhz or 863-865 (b7) Mhz available in many European countries. Therefore, the system can operate in different countries avoiding problems related to local regulations. The system can work on 16 different channels, receiving the radio signal via PLL Diversity technologiesa PLL. The channel is selected manually on receiver and transmitter or by infrared technology, which allows automatic synchronization and quick system setting. The transmitter (handheld or belt-mounted) operates for up to 10 consecutive hours via standard AA batteries.
Start 16R receiver features
- Type: Diversity
- Modulation: FM
- Frequency range: 863-865MHz
- Frequency response: 60Hz - 15kHz (± 3dB)
- Transmission optimization: Pilot tone
- THD: <1%.
- Audio outputs: balanced XLR, unbalanced 6.35mm (1/4") jack connector
- Controls: Power, channel up/down, ASC, volume indicators, channel number, antenna A/B, level 5 LEDs
- Dimensions: 212 x H44 x 115mm
- Weight: 400g
Transmitter Features
- FM modulation
- Frequencies range from 863-865MHz
- 16 channels
- Dynamic dialing
- Cardioid polarity
- Frequency response 60Hz - 15,000Hz (± 3dB)
- Output power 10 mW
- ON / OFF controls
- Indicators Power and battery status
- Power supply 2 x 1.5-volt AA batteries
- Operating time> 10 hours with alkaline batteries
- Length 254 mm
- Maximum diameter 52.5 mm
- Weight 250 g
