Acemic ACE-88 606-630 Mhz

Features

ACEMIC ACE-88

Digital UHF Handheld Wireless Microphone System

Power, freedom of movement and reliability in one wireless system. The ACEMIC ACE-88 is designed for those looking for an easy-to-configure digital wireless microphone system, ready to handle live performances, presentations and events with maximum convenience.

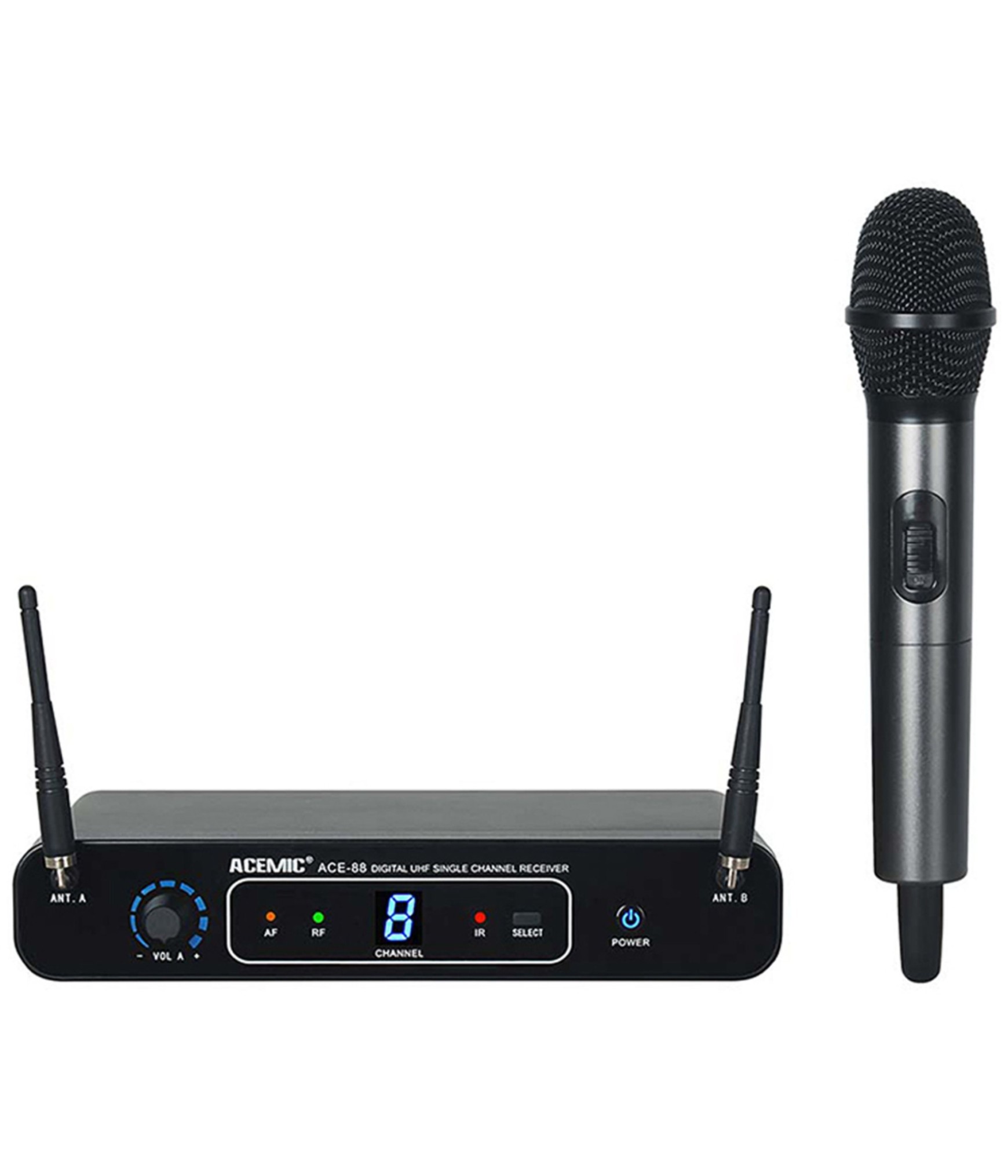

The ACEMIC ACE-88 606–630 MHz is a single-channel digital UHF wireless microphone system, designed to provide stable audio transmission, good sound quality and excellent freedom of movement. The system includes a wireless receiver and a dynamic handheld microphone, making it ideal for concerts, performances, karaoke, conferences, presentations, schools and places of worship.

The digital transmission operates with a 48 kHz sampling rate, approximately 3 ms latency and a frequency response of 30 Hz–18 kHz ±2 dB, providing natural and detailed voice reproduction. A dynamic range of over 96 dB and a signal-to-noise ratio of over 96 dB help maintain a clean and well-defined audio signal.

The ACE-88 uses digital transmission technology with π/4 DQPSK modulation and features 16 selectable frequencies. The system also incorporates a Digital ID Code, designed to help reduce interference, and convenient IR synchronization, allowing the microphone and receiver to be paired quickly and easily.

The version described here operates in the 606–630 MHz frequency range, offering a stated range of up to 60 meters line of sight, depending on environmental conditions and installation.

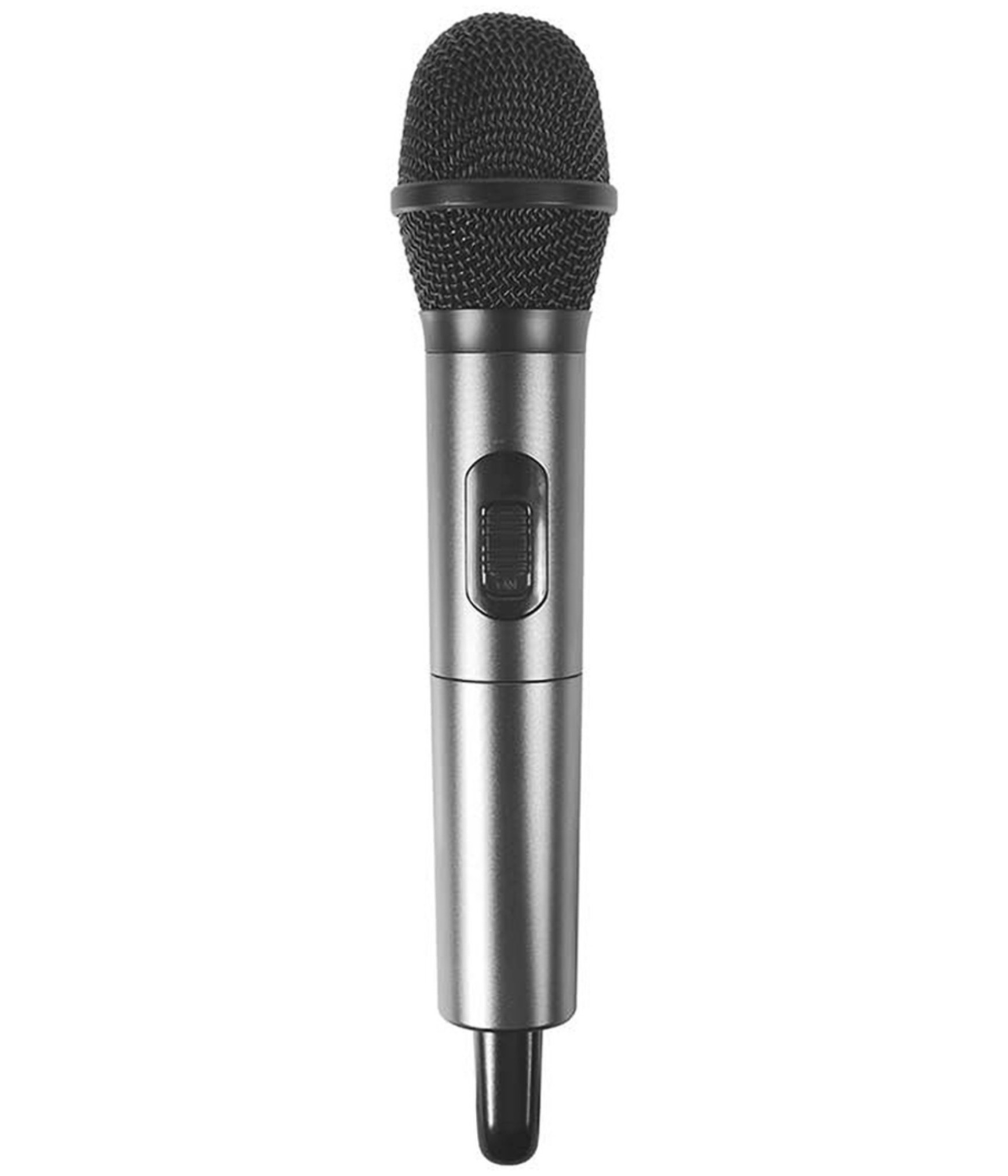

The handheld transmitter features a dynamic microphone capsule and is powered by 2 × 1.5 V AA batteries. The stated battery life is more than 8 hours, allowing extended use during events, performances and work sessions.

The transmitter output power is 10 mW, while infrared synchronization makes system setup quick and straightforward.

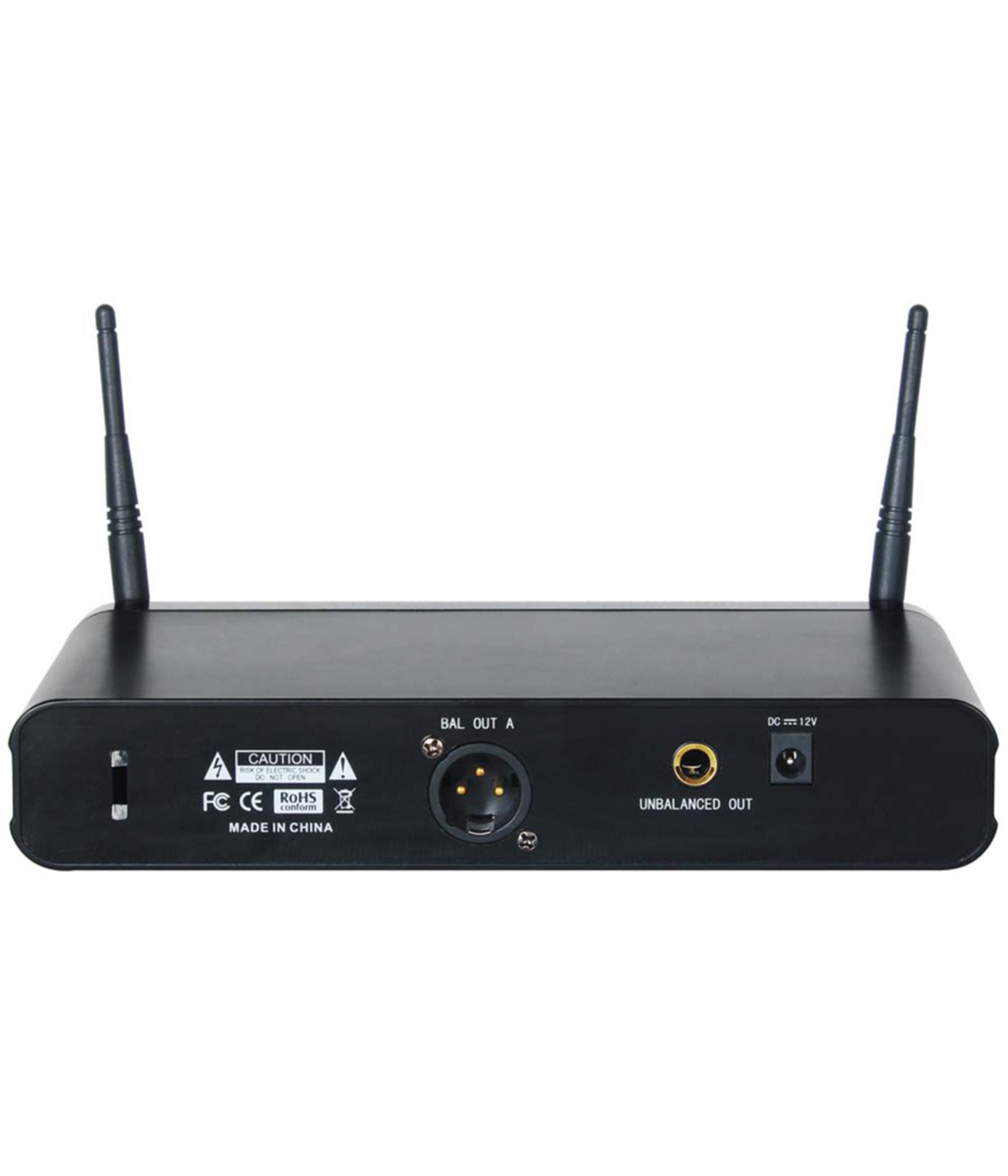

The ACEMIC ACE-88 receiver features a compact and functional design, with dedicated indicators for power, RF signal and audio signal. It provides both balanced and unbalanced audio outputs, allowing connection to mixers, amplifiers, active speakers and other audio equipment.
Ideal for Voice, Live Performances and Presentations

Thanks to its combination of digital transmission, low latency, extended battery life and up to 60 m range, the ACEMIC ACE-88 is a versatile solution for a wide range of professional and semi-professional applications.

Ideal For

• Amateur singers and musicians
• Karaoke
• Conferences and presentations
• Public speaking
• Schools and educational activities
• Theatres and performances
• Places of worship
• Events and entertainment

Main Features

• Type: Digital UHF wireless microphone system
• Configuration: Single channel
• Operating frequency: 606–630 MHz
• Transmission: Digital
• Modulation: π/4 DQPSK
• Selectable frequencies: 16
• Sampling rate: 48 kHz
• Latency: Approx. 3 ms
• Frequency response: 30 Hz–18 kHz ±2 dB
• Dynamic range: >96 dB
• Operating range: Up to 60 m line of sight
• Transmitter power: 10 mW
• Microphone capsule: Dynamic
• Transmitter power supply: 2 × 1.5 V AA batteries
• Battery life: More than 8 hours
• Synchronization: IR
• Digital ID Code: Yes
• Receiver outputs: Balanced and unbalanced
• Receiver power supply: 12 V / 1 A
• Receiver dimensions: 205 × 115 × 37 mm

EAN:

Note: The 606–630 MHz version is a specific frequency variant. For use in Italy, it is recommended to verify that this frequency band complies with current radio regulations before operation.
