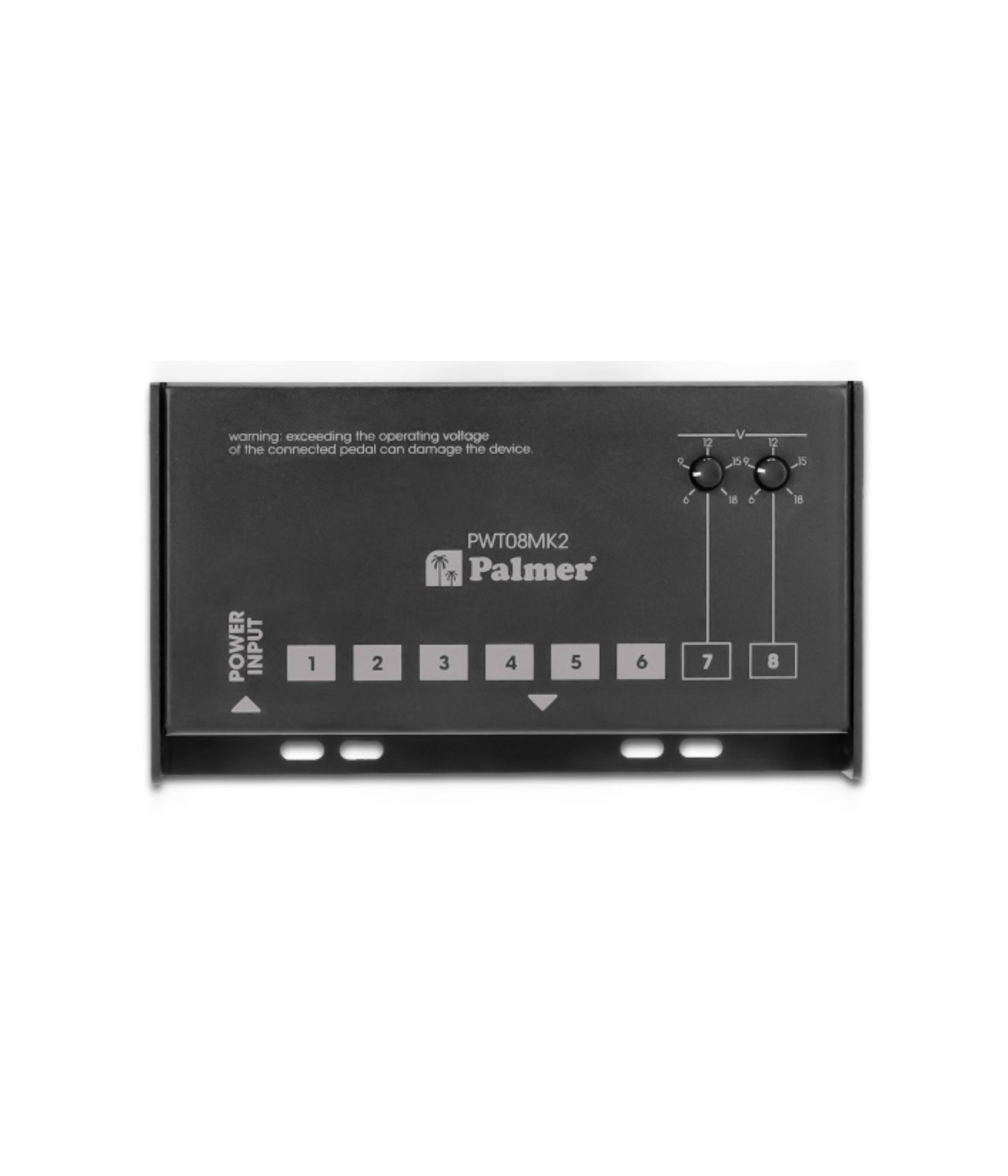

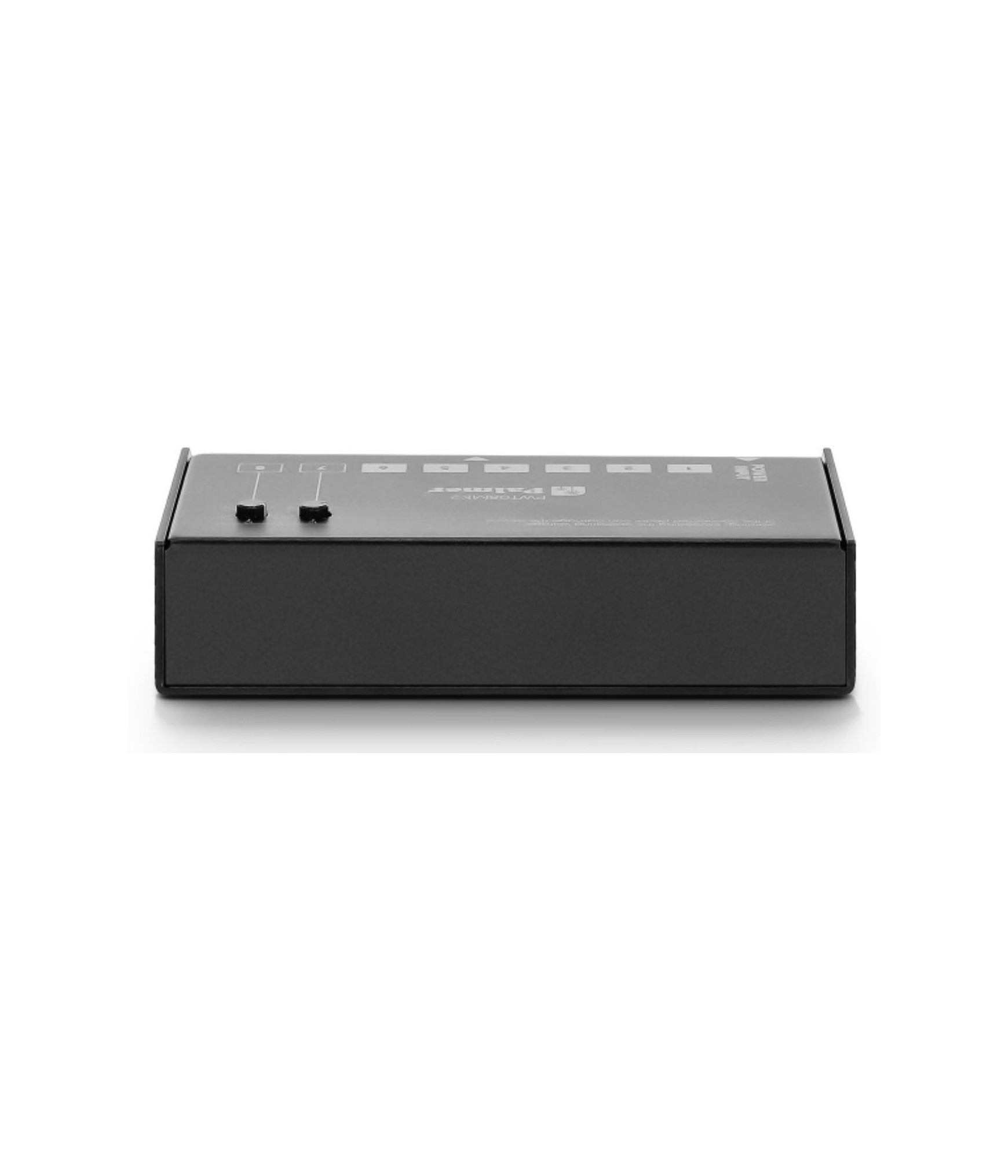

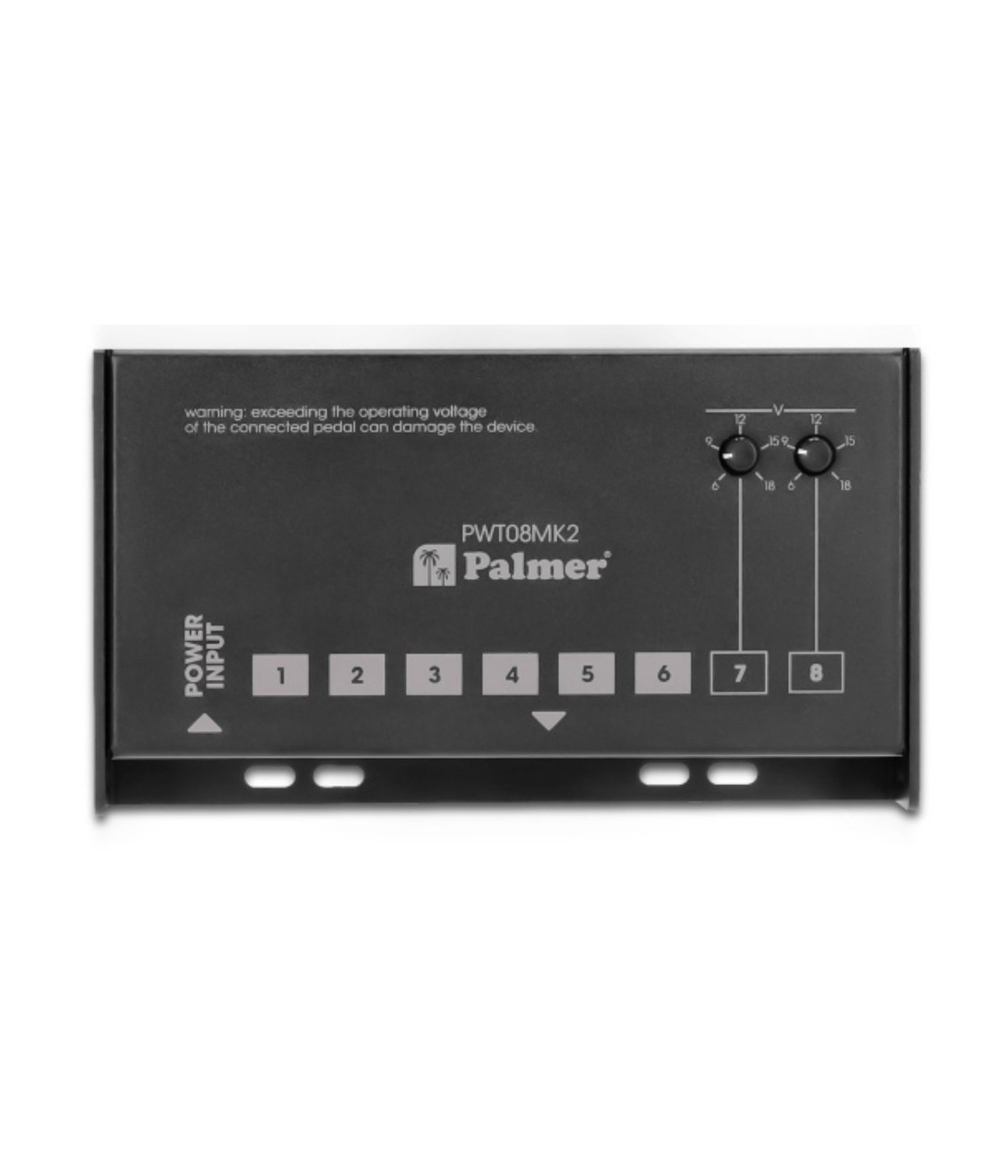

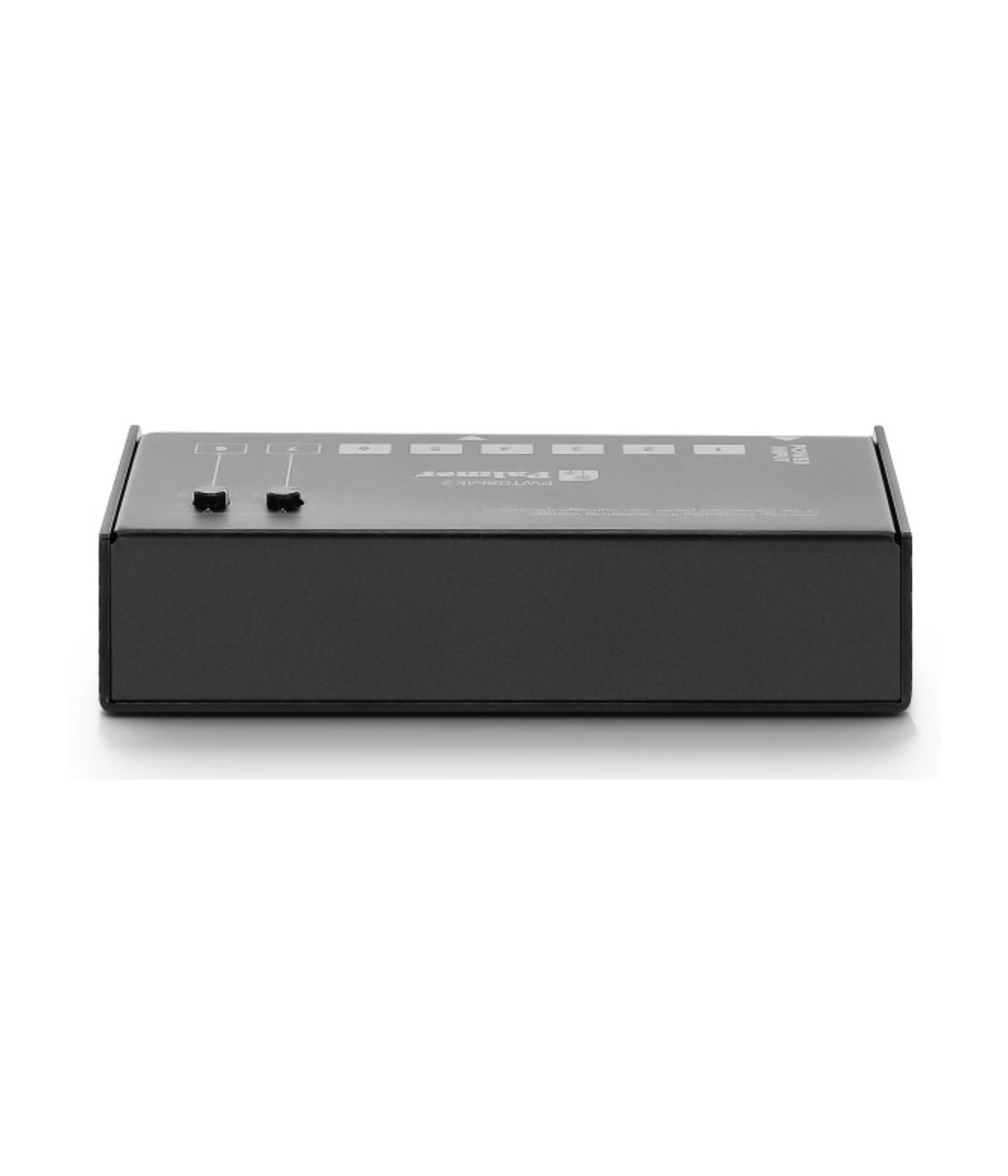

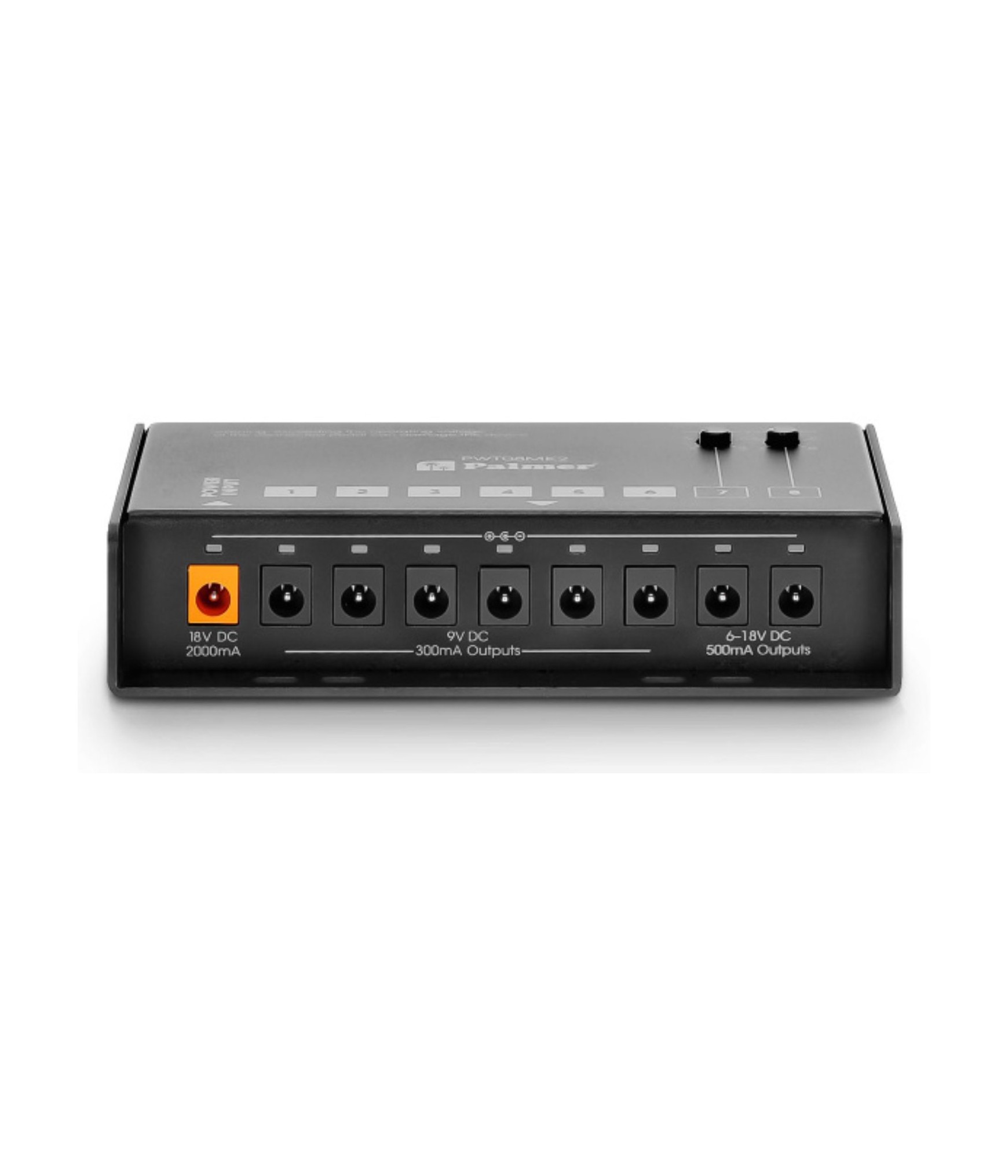

Palmer PWT08 MK2 8 Out

Features

Palmer PWT08 MK2

The ideal solution for a low-noise pedalboard with high energy level effects pedals.

The PWT 08 MK2 power supply features a slim design that allows it to be placed under any pedalboard. The total energy of 2,000 mA is distributed over eight mutually isolated 9 V DC outputs.

Two outputs are adjustable between 6 and 18 volts to simulate the voltage drop of old batteries or to power effects pedals that require higher voltage. Each of these two outputs isolated from each other also provides 500 mA and is therefore ideal for digital effects pedals with high current requirements. The other six outputs isolated from each other provide 300 mA each.

The PWT 08 MK2 pedalboard power supply is regulated to provide a stable supply voltage and is protected against short circuits and overvoltages. It has a power LED on the input and a two-color LED on all outputs to indicate its status.

Included with the PWT 08 MK2 is the appropriate adapter for the US, UK and EU and a complete set of DC cables.

Features:

• Individually isolated DC outputs: 8
• Output 1-6: 9 V (300 mA max)
• Output 7-8: 6 V to 18 V (500 mA max)
• Output connections: 2.1 x 5.5 mm
• Output voltage: 6 V - 18 V
• Individually isolated outputs: Yes
• Polarity: Negative pole at center
• Indicators: Power supply, status LED (green: output OK / red: error)
• Control elements: Output voltage regulator
• Dimensions: WxWxH 80 x 140 x 32 mm
• Weight: 0.293 kg

In the box:

• PW18VDCUNI plug-in power supply (EU/UK/US),
• 8x DC cable (60cm)
• 4x rubber feet

EAN 4049521811456
