JOYO JP-05 9V 12V 18V USB Rechargeable

Features

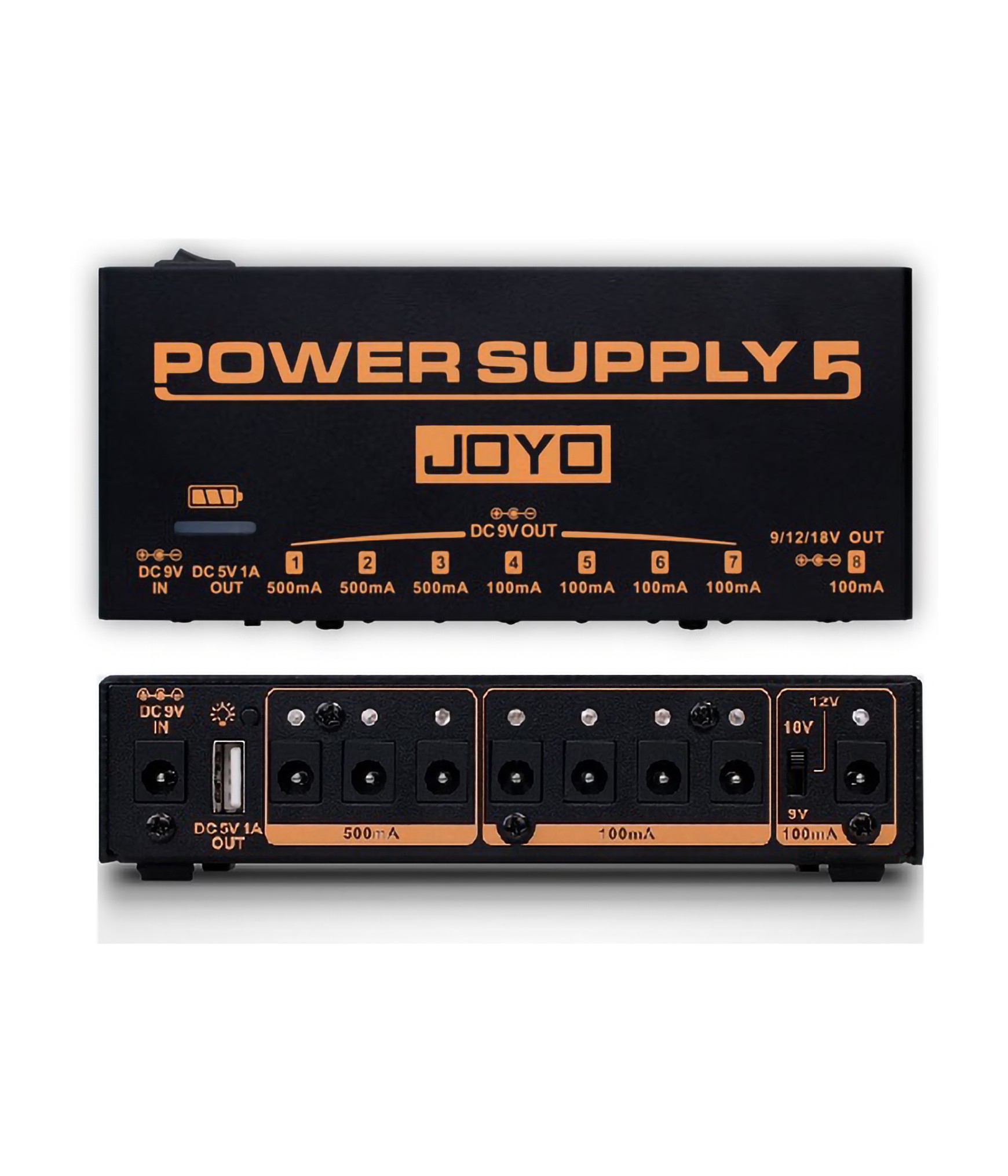

Joyo JP-05

Rechargeable Multi-Voltage Power Supply for Effects Pedals

The JOYO JP-05 is a high-performance rechargeable power supply designed to deliver maximum flexibility and reliability for guitarists and bassists, both live and in the studio. Equipped with 8 isolated DC outputs and a 5V USB output, it allows you to power analog and digital pedals simultaneously, even when they require different voltages and current draws.

Thanks to its internal 7.4V / 4400 mAh lithium battery, fully rechargeable in about 2.5 hours, the JP-05 provides hours of use without needing a mains connection—making it ideal for live performances, rehearsals, and mobile setups.

Each output features independent filtering and protection circuits, ensuring clean, stable current while eliminating unwanted noise.

The JOYO JP-05 also includes a reverse polarity cable, making it compatible with center-positive pedals and greatly expanding its versatility.

Power Outputs

• DC Outputs 1–3: Ideal for high-current digital pedals or for use with a daisy chain (up to 5 pedals at 100 mA each)
• DC Outputs 4–7: Perfect for low-current analog pedals – 9V center negative – 100 mA
• DC Output 8: For pedals requiring specific voltages – Selectable 9V / 12V / 18V – 100 mA
• USB 5V Output: Ideal for powering USB devices (lights, controllers) or charging smartphones

Battery & Runtime

• Internal battery: Lithium 7.4V / 4400 mAh
• Charging time: approx. 2 hours 30 minutes

Estimated autonomy:

• Up to 2 hours with high-current digital pedals
• Up to 10 hours with 8 analog pedals

Battery Level Indicator (4 Stages)

• 0% – Flashing red (recharge required)
• 0–30% – Red
• 30–60% – Yellow
• 60–100% – Green

During charging, the indicator flashes through the colors to show charging status.

In the Box

• 1 × 9V 2A power adapter
• 8 × DC cables
• 1 × Reverse polarity cable

EAN: 6943206701330
