Palmer PWT05MKII 9V 5 Output

Palmer Audio

Ref PWT05MKII
Power Supply 9V 5 Output
€72.13

Features

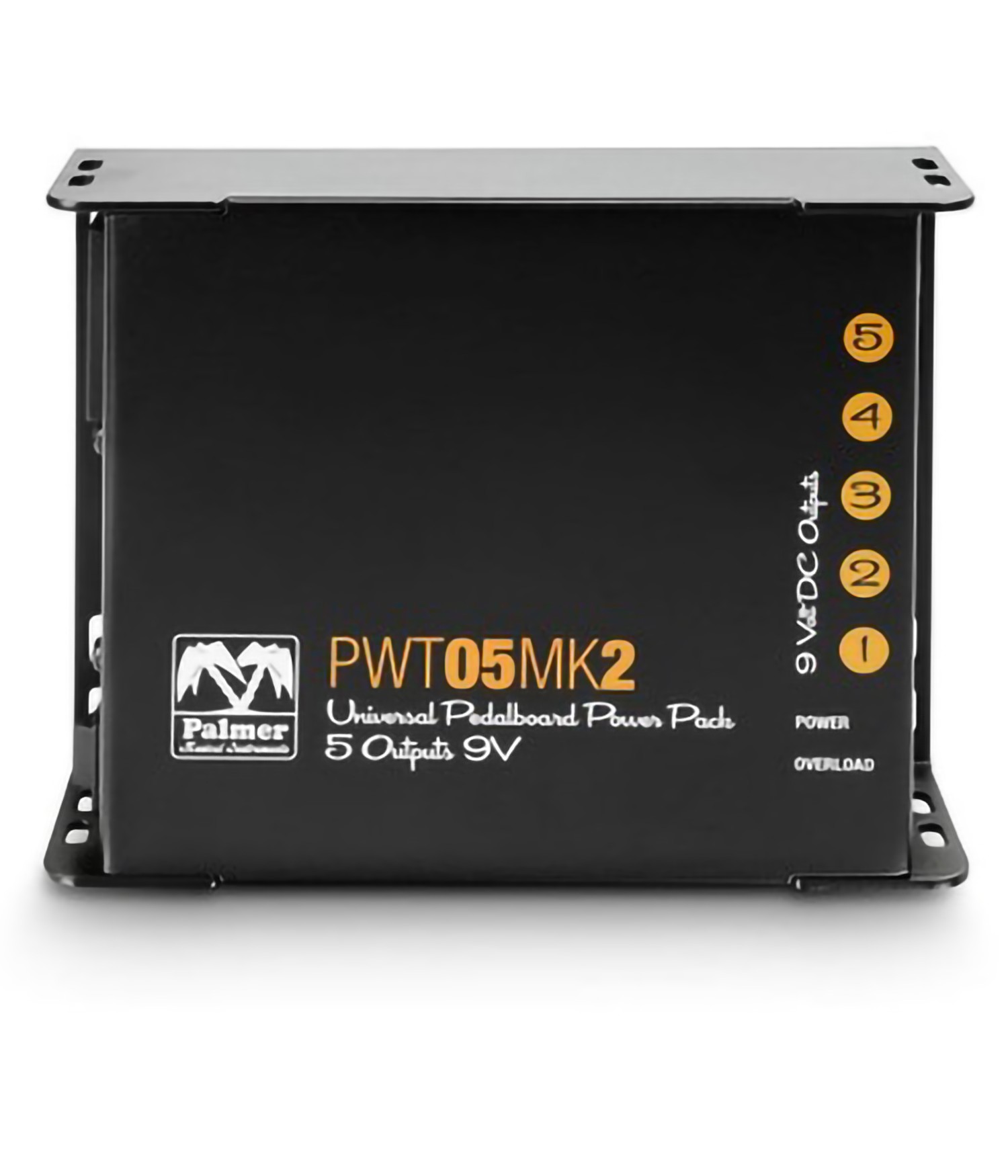

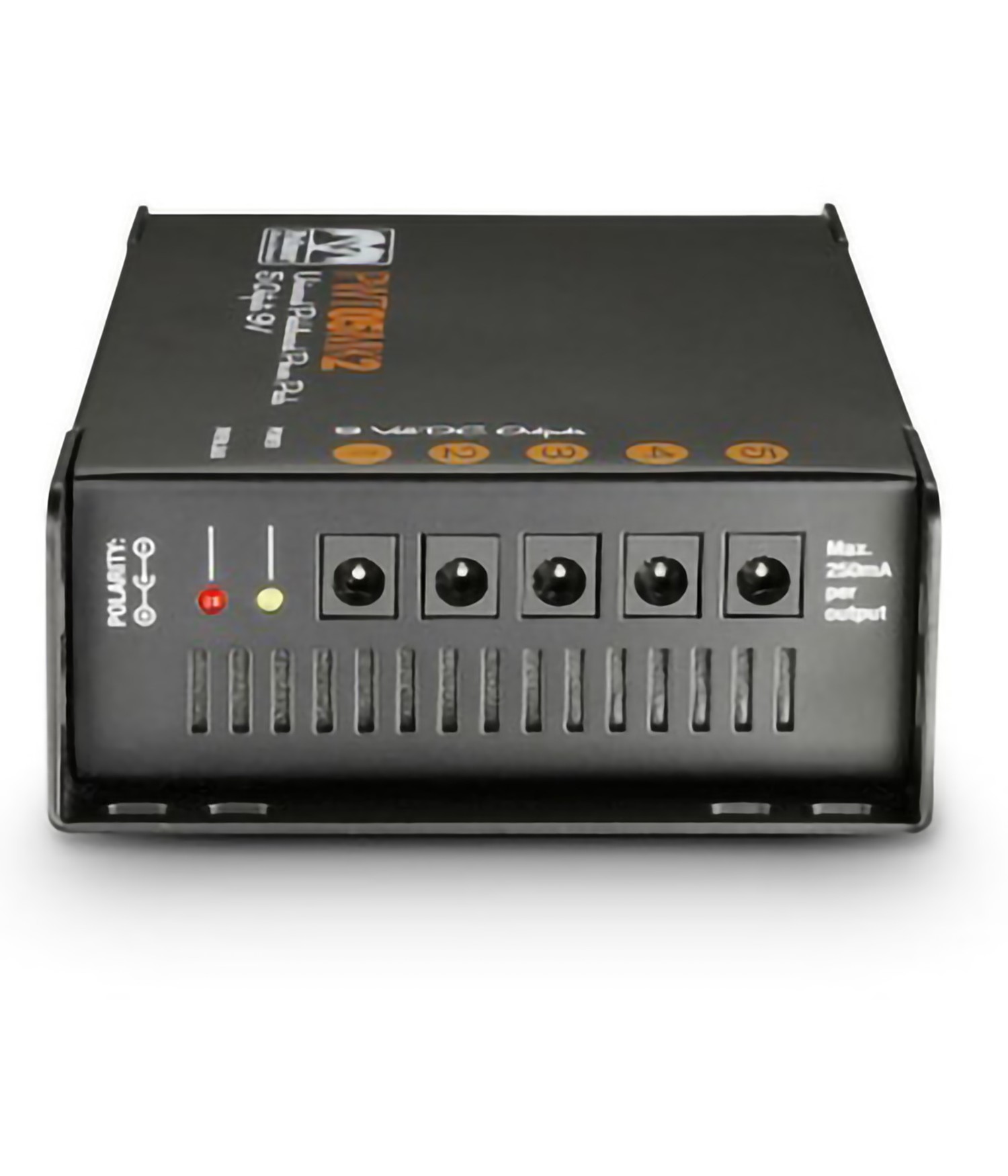

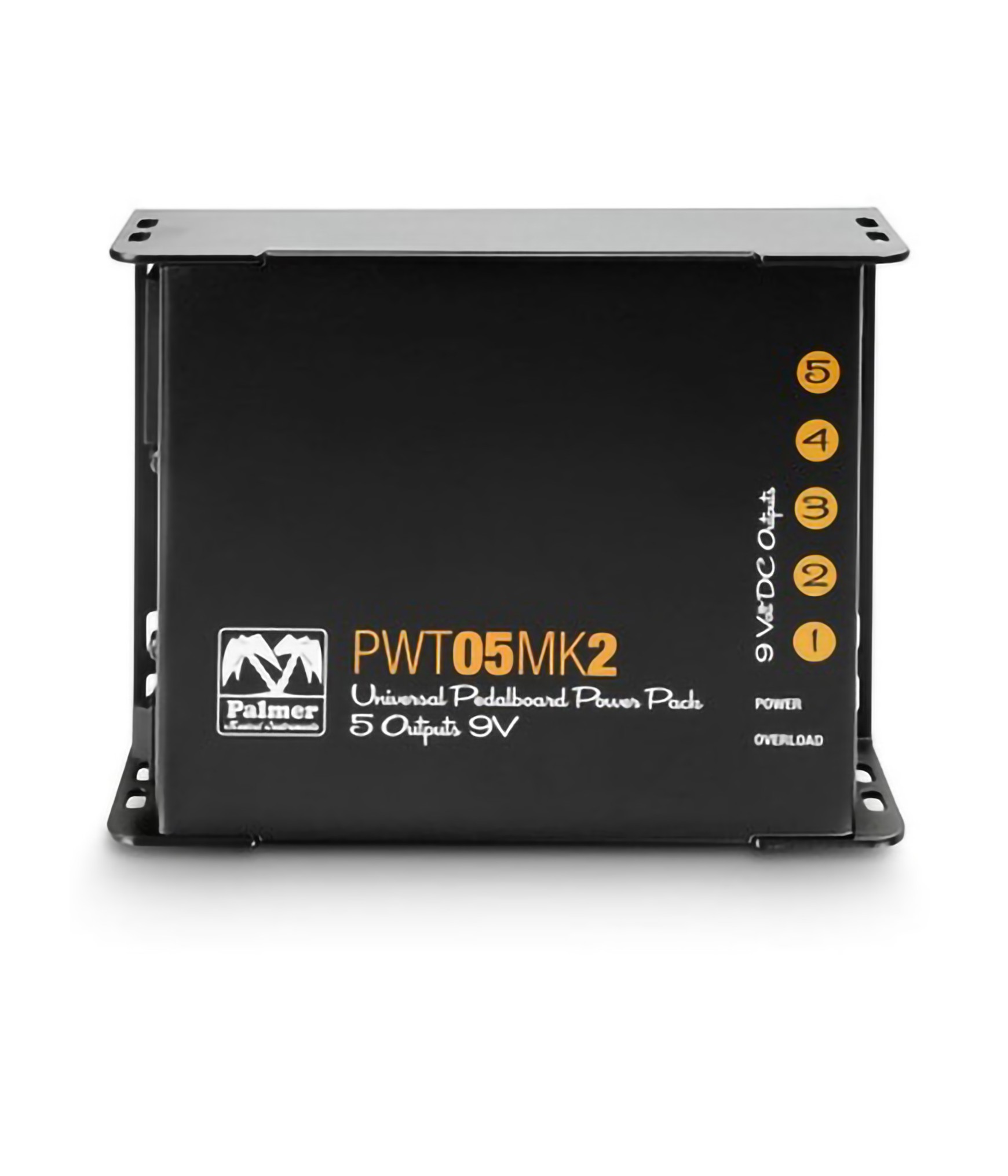

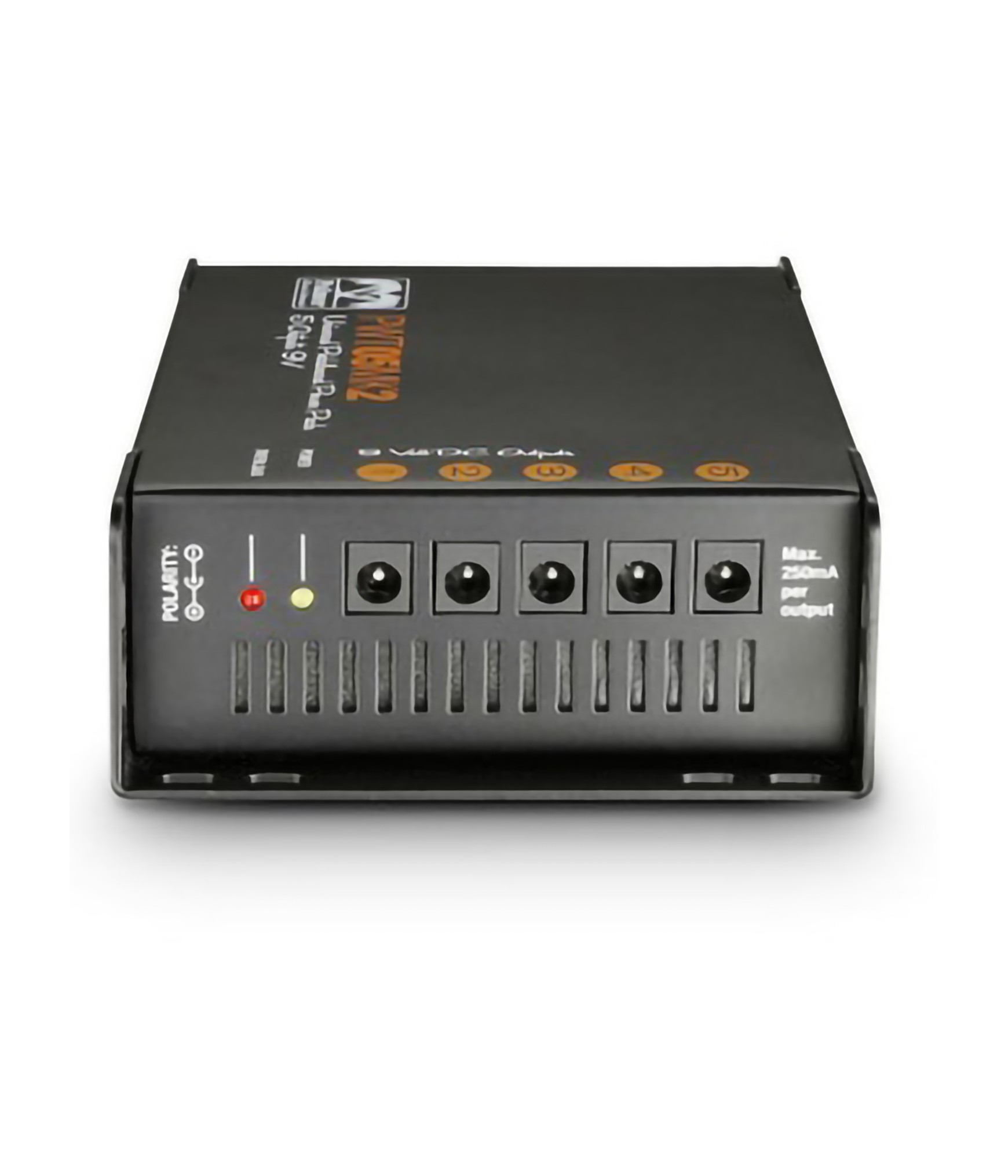

Palmer PWT05MKII

Universal 9 V power supply for pedalboards with 5 outputs

With a constant 250 mA per output, Palmer's compact PWT 05 MK2 power supply is suitable for virtually all pedalboards. For quality pedal power for effects pedals, the five hollow connectors with negative pole in the center are isolated from each other to avoid ground loops and related hum.

PWT 05 MK2 is overload protected and comes with 25- and 50-cm connecting cables and two Y-cables. The first, with a black plug, connects two 9 V outputs to double the current intensity to 500 mA; the other, with a white plug, connects two 9 V outputs to double the voltage to 18 V. Also included in the supply is a distributor for simultaneous connection of five pedals to one output, provided the entire voltage consumption does not exceed 250 mA.

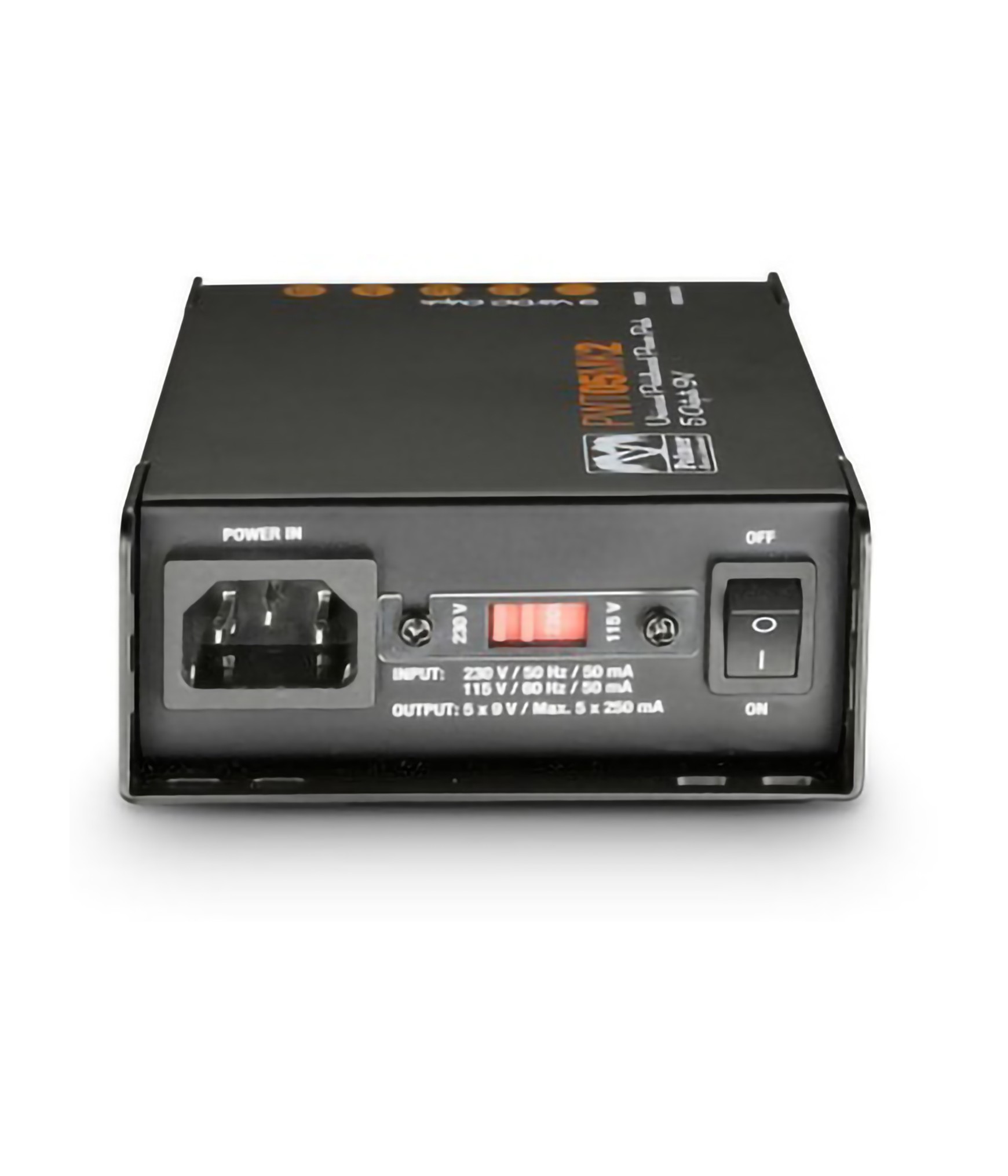

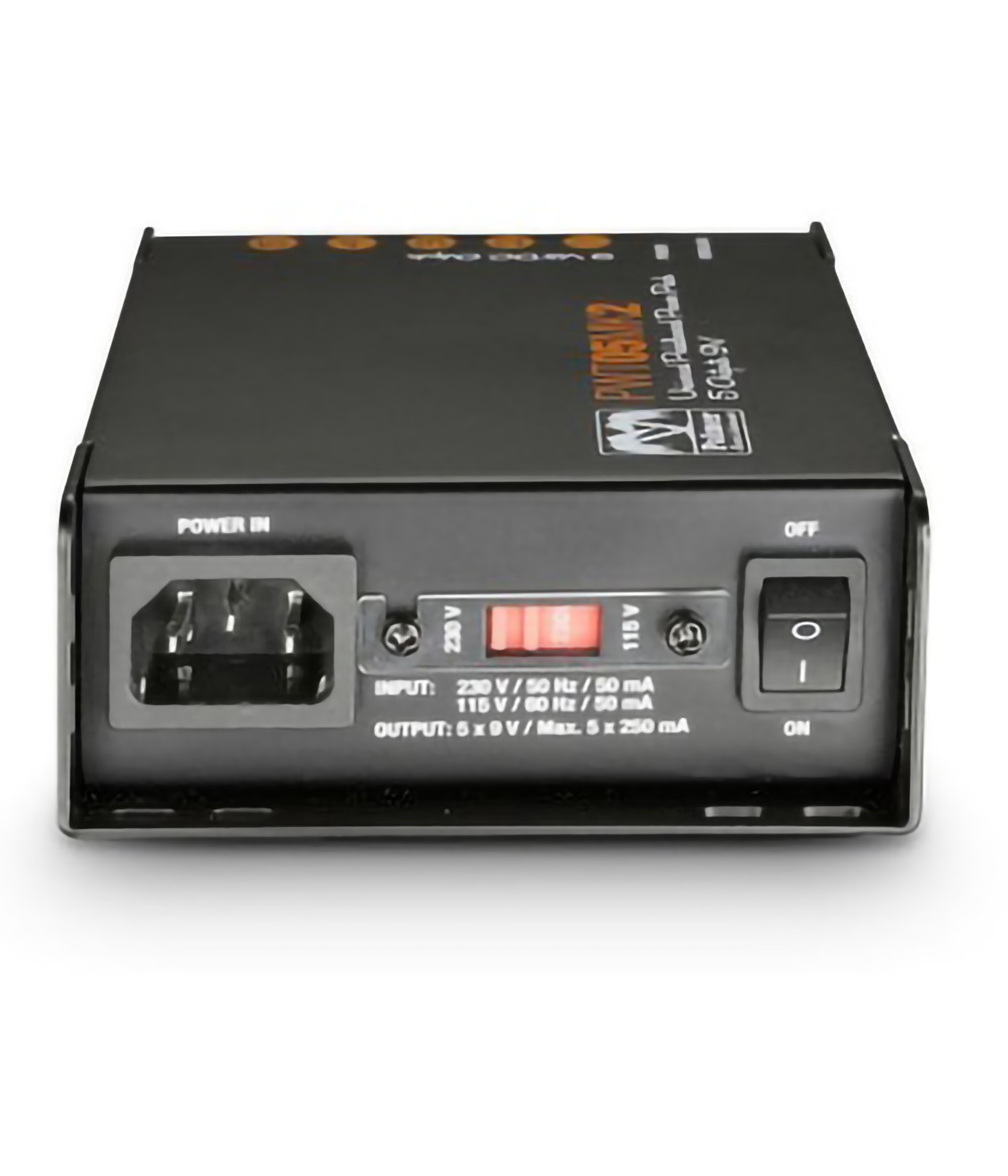

The extremely stable housing of Palmer PWT 05 MK2 offers fixed mounting possibilities and cable strain relief. It possesses an IEC mains socket and a voltage selector switch, enabling it to be used worldwide.

Features:

  • Universal 9 V power supply
  • Isolated outputs of 250 mA each
  • Overload protection
  • Absolutely stage-appropriate housing
  • Easy mounting and strain relief
  • Connecting cable and adapter included
  • 2.1 x 5.5 mm output connections
  • Isolated outputs
  • Polarity: negative pole to center
  • Indicators Overload, Power
  • Dimensions:  WxDxH: 105 x 140 x 45 mm
  • Weight: 1.5 kg

EAN 4049521187254
