Nux NMA-3AAP Amp Academy Stomp Compact Modeler

Features

NUX Amp Academy Stomp

Guitar Multi-Effects and Amp Modeling Pedal

The NMA-3AAP is a powerful multi-effects and amp-modeling pedal that combines the flexibility of a digital modeler with the convenience of a USB audio interface and Bluetooth app control. Equipped with TS/AC-4K White-Box Modeling technology and the Cyber IR engine, it accurately recreates every component of an amplifier — from the preamp to the power amp — delivering an extremely realistic, dynamic and harmonically rich tone.

With its 9 effect blocks, Scene and Preset modes, 30-second stereo looper, and comprehensive connectivity (balanced inputs/outputs, send/return, MIDI and external control), the NUX Amp Academy Stomp is a versatile tool perfect for live performances, studio work and home recording. The Quick Block workflow allows fast and intuitive parameter editing and footswitch assignment.

The pedal also includes the NBT-1 Bluetooth module, enabling remote control via iOS and Android apps for quick, intuitive and immediate sound editing. A compact and professional device designed to offer sound quality, portability and maximum creative freedom to every guitarist.

Ideal for

• Guitarists who want everything in a single device: amp tone, effects, cabinet simulation and recording capabilities — without needing an amp and speaker cabinet.
• Players who work both in the studio and live: the audio interface and balanced outputs make it versatile for
• recording, streaming and stage use.
• Anyone seeking maximum tonal flexibility — from clean to high gain, effects, ambience — and who wants to experiment with virtual preamps, power amps, cabinets and mic positions.
• Musicians with limited space or those who need to travel light — a compact and robust pedalboard solution.

Features

• Algorithm: TS/AC-4K Physical Modeling
• Effect Blocks: 9 (Noise Gate, Compression, Effects, Amp, EQ, Send/Return, IR, Delay, Reverb)
• Presets: 27 stock, 27 user-editable
• Impulse Responses: 60 Factory Cyber IR, 40 User IR

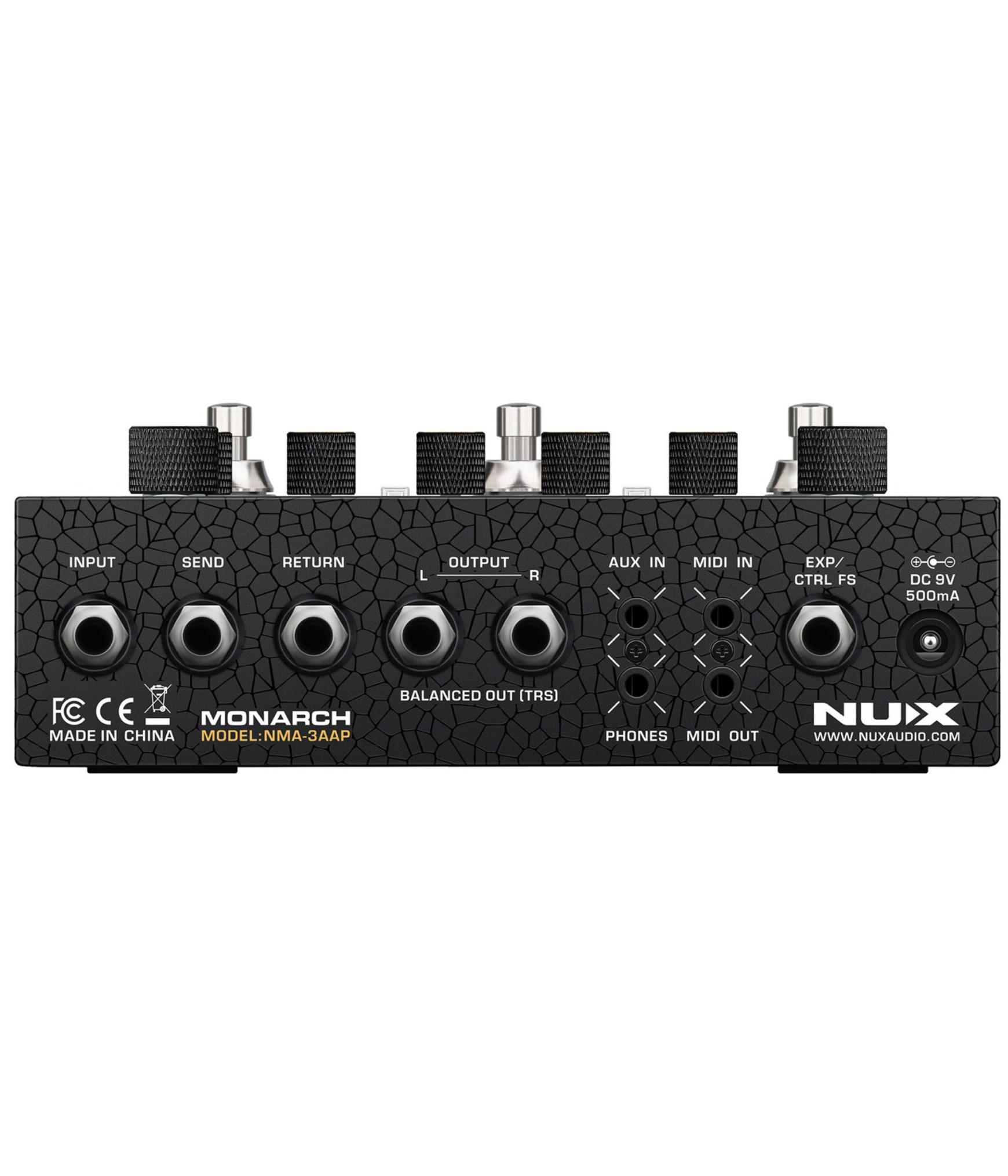

• Inputs/Outputs: Balanced L/R TRS
• MIDI: In/Out
• Bypass: Buffered Bypass
• USB: USB-C 24-bit / 48 kHz Audio, USB MIDI for firmware updates
• Bluetooth: NBT-1 Module with App control
• Stereo Loop: 30 seconds, PRE/POST placement
• Input Impedance: Input 1 MΩ, Aux In 10 kΩ
• Output Impedance: L/R Output 100 Ω, Send 1 kΩ, Phones 10 Ω
• Dynamic Range: 111 dB
• Sampling Frequency: 48 kHz / 32-bit
• System Latency: Minimum 2 ms
• Power Supply: 9V DC Center Negative
• Current Draw: < 500 mA
• Quick Block Design: Effect assignment to 4 footswitches
• Software: iOS/Android App, PC Editor
• Dimensions (LxDxH): 183 × 30 × 65.3 mm
• Weight: 0.9 kg
