Palmer River Trave Passive Re-Amplification Box

Palmer Audio

Ref PTRAVE
Passive Re-Amplification Box
€72.95
€65.66 Save 10%

Features

Palmer River Trave

Passive re-amplification box

With the Palmer beam passive re-amplification box you can add new sounds and creative timbres to your music and ultimately be true to your sound.

It allows you to experiment to your heart's content by passing guitar, bass, keyboard, drums and even vocal tracks into amplifiers and effects pedals. As with many other techniques, you need the right tools.

Palmer beam is a passive reamping box that requires no external power supply. Inside is a specially developed transformer that converts the balanced line signal to an unbalanced Hi-Z signal with a perfectly matched impedance for the guitar amplifier or effects pedal. At the same time, Beam prevents basic loops, which would otherwise be almost impossible to avoid when matching the audio interface or mixer output with the guitar amplifier or an effects pedal.

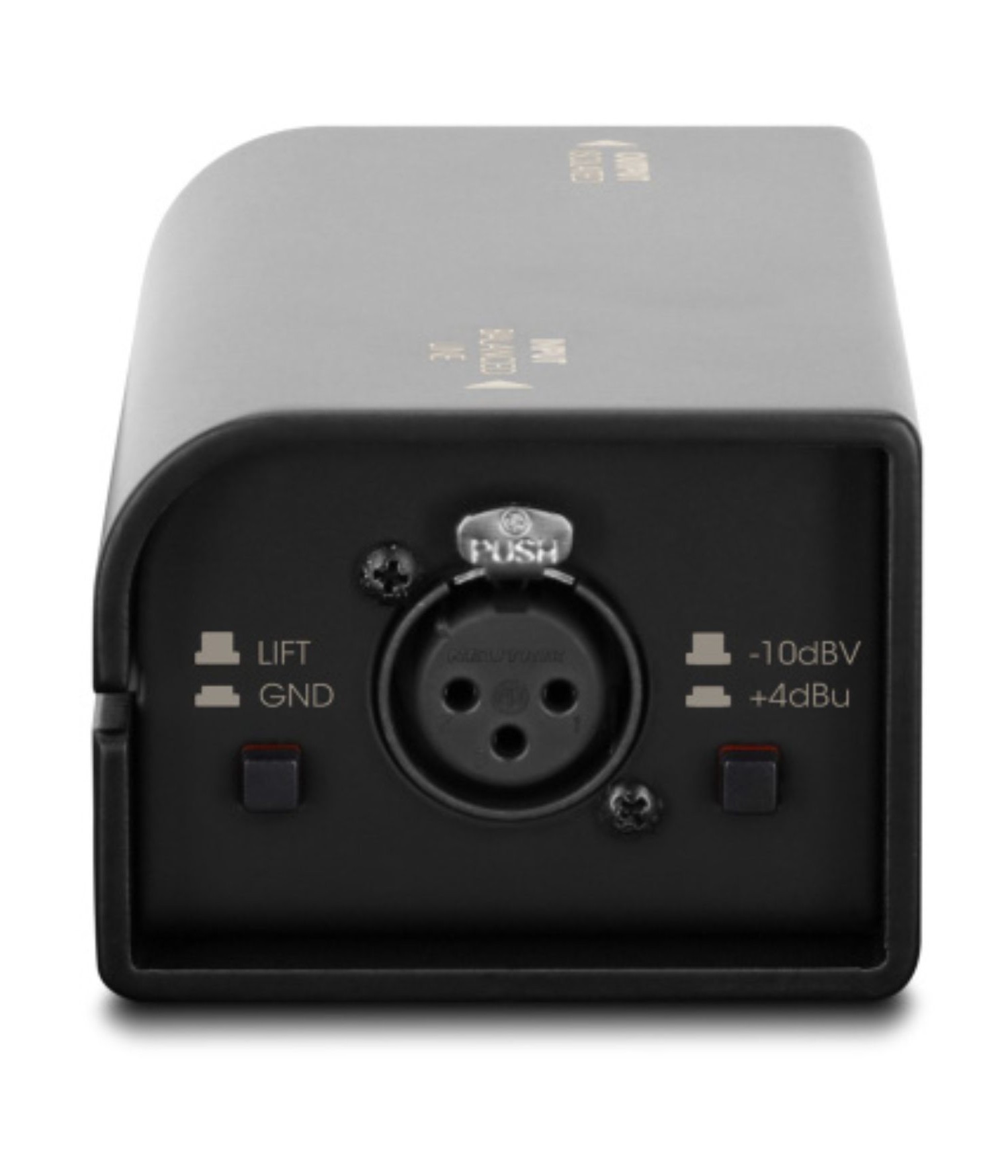

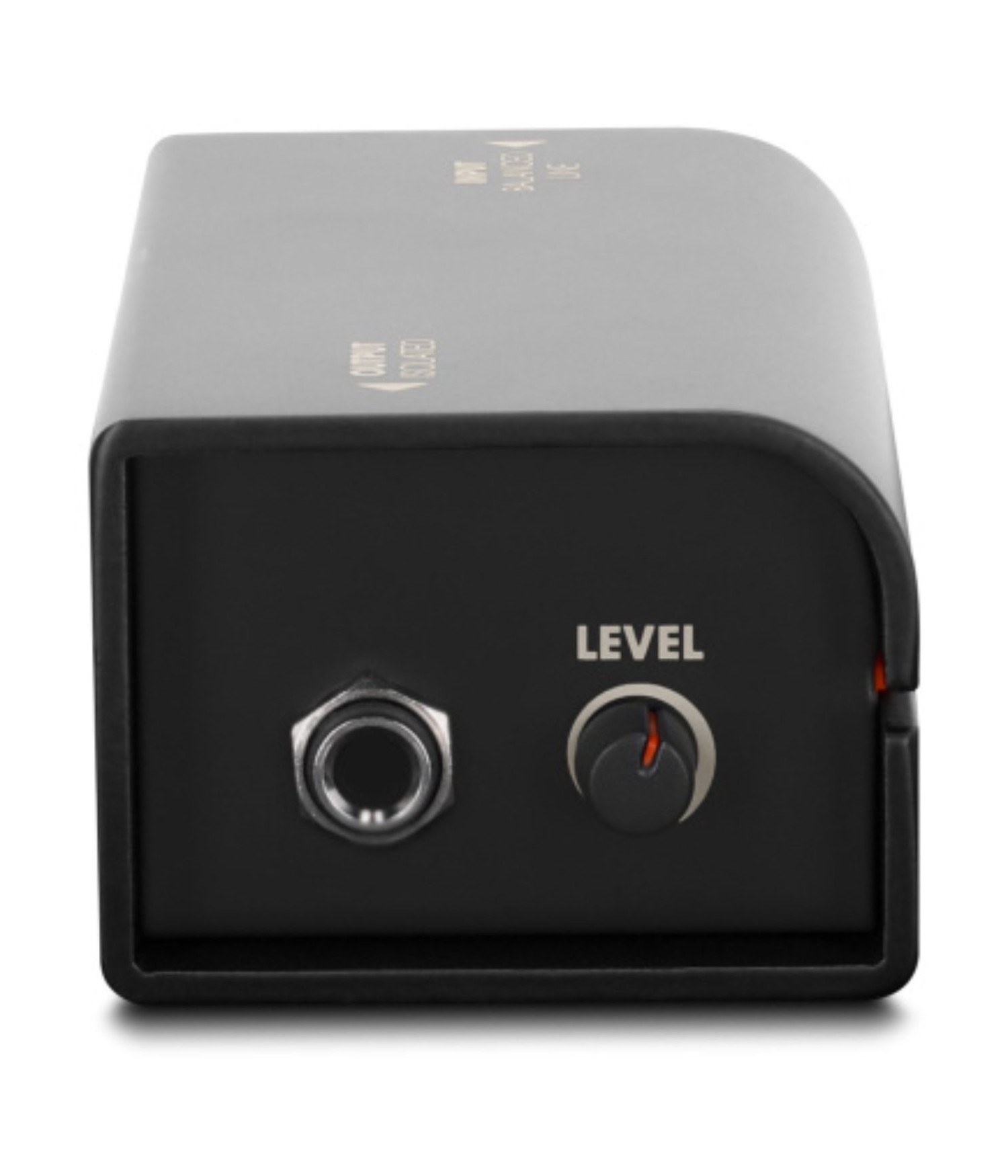

The input of this reamping box allows you to switch between consumer (-10 dBV) and professional (+4 dBu) levels, while the output level is infinitely adjustable, so you can manage your amp or pedals exactly as you want.

Highlights

  • Ideal for routing signal from DAW or mixer to guitar or bass amp
  • Prevents background hum, ground lift switch
  • Converts balanced line signal to unbalanced instrument signal
  • Optimal impedance matching
  • Keeps sound clean and crystal clear
  • Allows later modification of amplifier settings
  • Switchable input level -10 dBV/+4 dBu
  • Continuously adjustable output levelPassive operation, no power supply required
  • Sturdy aluminum and steel construction

Features:

  • Product Type: DI-Box
  • Type: Passive
  • Number of conduits: 1
  • Isolated transformer: Yes
  • Number of inputs: 1
  • Input type: symmetrical
  • Input connections: XLR
  • Number of outputs: 1
  • Output type: asymmetrical
  • Output connections: 6.3 mm jack
  • Switch Ground Lift: Yes
  • Other functions: Input level switch, Output level potentiometer
  • Dimensions: HxWxD 140 x 50 x 68 mm
  • Ambient temperature (operating): -20 - 70 °C
  • Relative humidity: < 80% (non-condensing)
  • Accessories (supplied): Inscription label (tourist label), Rubber feet
  • Weight: 0.395 kg

EAN 4049521659430
