Oqan Q24D PRO Digital Mixer

Features

OQAN Q24D PRO

A 24-channel digital mixer designed to deliver professional performance, maximum operational flexibility and an intuitive workflow. Equipped with motorized faders, a 9" HD touch screen, remote control via app, Bluetooth connectivity and direct USB recording, this console guarantees high-quality sound, ease of use and advanced connectivity.
With an excellent price-to-performance ratio, the Q24D PRO is the ideal solution for those who want the power of a digital mixer at the cost of an analog model — perfect for live sound, fixed installations and compact production studios.

Highlights

• 24 channels with 16 microphone preamps and hybrid inputs: RCA, USB and Bluetooth
• Stereo Bluetooth input for playing music from smartphones or tablets
• 9 motorized faders (8 channel + 1 master) with 4 layers and one user-programmable layer
• 9" HD touch screen for full control and a fast, intuitive interface
• 2 stereo effect processors with 16 presets each
• 20 internal scenes with 4 configurable physical quick-access buttons
• Direct recording and playback from USB storage
• Remote control via BLE app for wireless mixing
• 14 internal buses and 4 programmable DCA groups
• Password protection system to avoid unwanted changes

Ideal for

• Audio services and live technicians who need a versatile and reliable digital mixer
• Houses of worship, theaters and conference halls requiring ease of use and remote control
• Bands, musicians and music schools looking for a complete and intuitive mixer
• Home and project studios integrating multitrack recording and automation
• Fixed installations requiring stability, audio quality and immediate connectivity

Technical Specifications

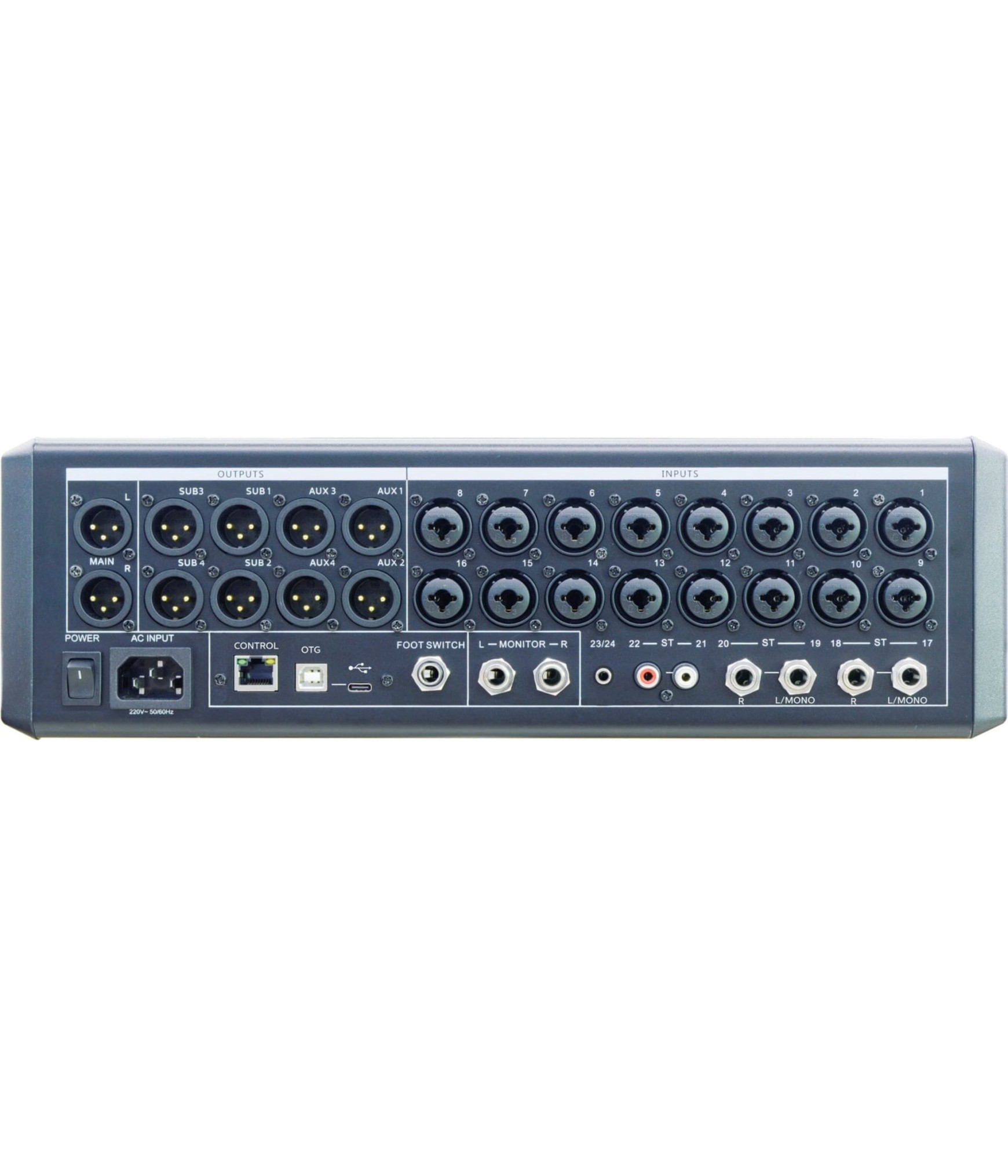

Inputs

• 16 microphone inputs (combo XLR / TRS)
• 4 stereo RCA inputs
• 1 stereo Bluetooth input
• 1 USB port for recording and playback

Outputs

• 8 balanced XLR outputs
• 4 auxiliary TRS outputs
• 1 headphone output

Internal Processing

• 2 independent stereo FX engines
• 16 programs per processor (reverb, delay, chorus, flanger, etc.)
• 4-band EQ and compressor per channel
• 14 internal buses (subgroups, auxiliaries and master)
• 4 programmable DCA groups

Control & Storage

• 9" HD touch screen with graphical interface
• 9 motorized faders (4 layers + 1 programmable layer)
• 20 internal scenes with 4 physical quick recalls
• User password protection

Recording & Playback

• Direct to USB storage
• WAV / MP3 file compatibility
• Connectivity & Remote Control
• USB-B port for computer connection
• Stereo Bluetooth for audio and BLE for remote control
• Mobile app control for wireless mixing

Construction & Dimensions

• Metal chassis with reinforced sides
• Universal power supply 100–240 V AC
• Dimensions: 515 × 400 × 130 mm
• Weight: approx. 8 kg

EAN: 8435017329646
