Neumann TLM 103 Studio Set Studio Microphone Silver

Features

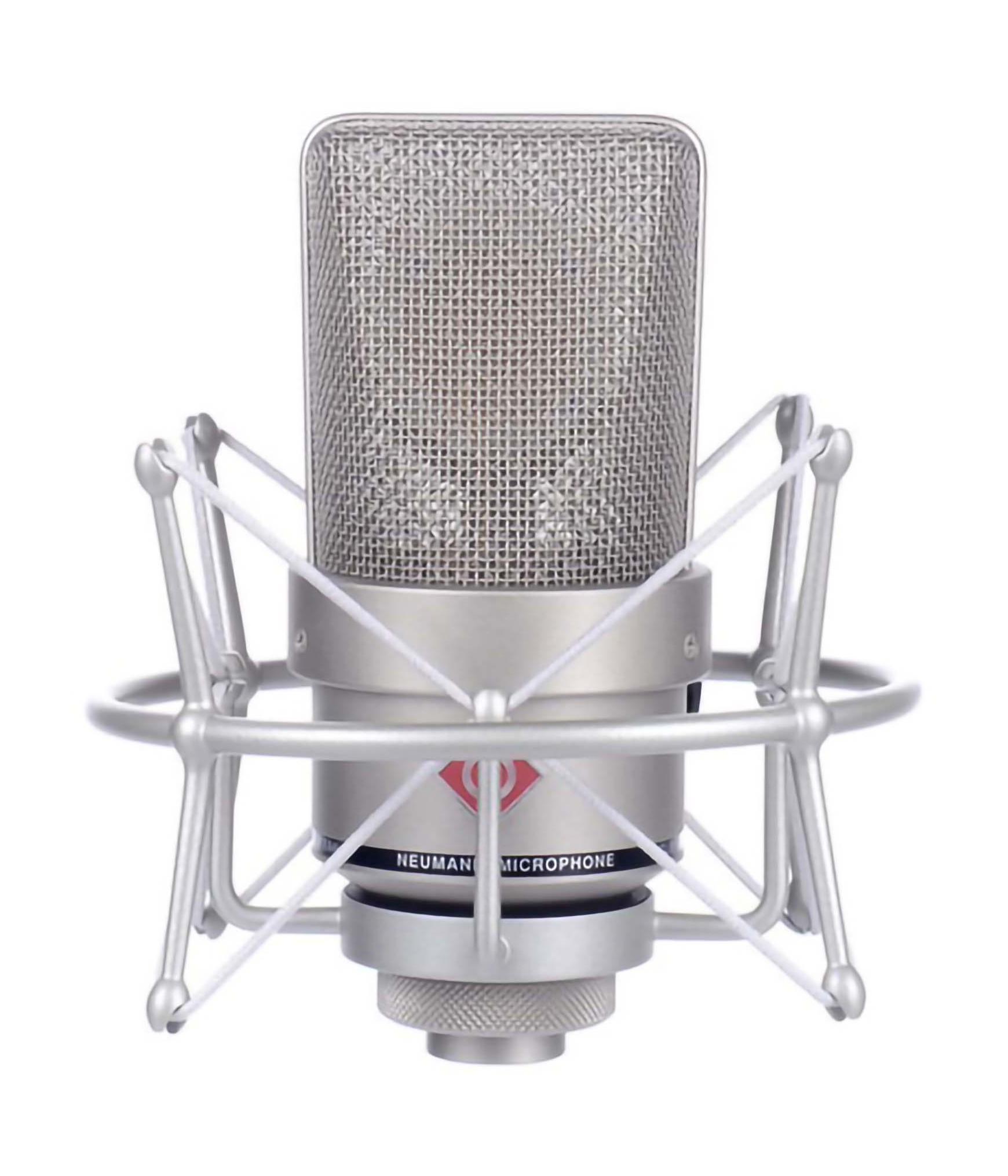

Neumann TLM 103 Studio Set Silver

The TLM 103 is the ideal large diaphragm microphone for all professional and semi-professional applications requiring the utmost in sound quality on a limited budget. By utilizing the tried and true transformerless circuit found in numerous Neumann microphones, the TLM 103 features yet unattained low self-noise and the highest sound pressure level transmission. The capsule, derived from that used in the U 87, has a cardioid pattern, is acoustically well-balanced and provides extraordinary attenuation of signals from the rear.

Specifications

• Acoustical operating principle: Pressure gradient transducer
• Directional pattern: Cardioid
• Frequency range: 20 Hz - 20 kHz
• Sensitivity at 1 kHz into 1 kohm: 23 mV/Pa
• Rated impedance: 50 ohms
• Rated load impedance: 1 kohms
• Equivalent noise level, CCIR: 17.5 dB
• Equivalent noise level, A-weighted: 7 dB-A
• Signal-to-noise ratio, CCIR (rel. 94 dB SPL): 76.5 dB
• Signal-to-noise ratio, A-weighted (rel. 94 dB SPL): 87 dB
• Maximum SPL for THD 0.5%: 138 dB
• Maximum output voltage: 13 dBu
• Supply voltage (P48, IEC 61938): 48 V ± 4 V
• Current consumption (P48, IEC 61938): 3 mA
• Matching connector: XLR3F
• Weight approx.: 450 g
• Diameter: 60 mm
• Length: 132 mm
