Ear Trumpet Labs Edwina

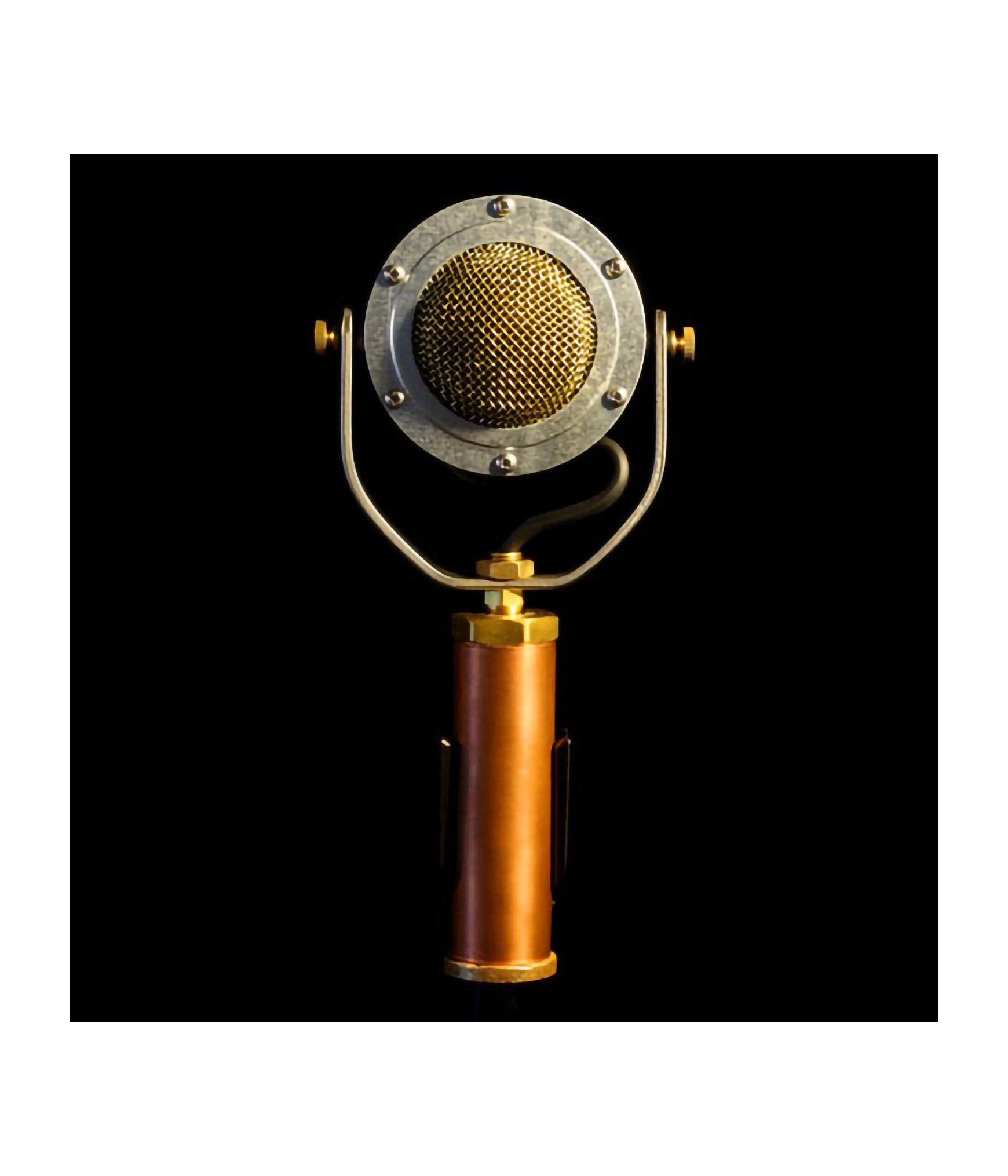

Our most popular model, Edwina is a versatile large-diaphragm condenser microphone with great sound to match her distinctive but not dominating looks.
With meticulously tested, hand-wired electronic components, Edwina is designed specifically for feedback rejection in demanding live settings. Her smooth, detailed sound excels at all kinds of stage duties, from vocals to acoustic instruments to drum overheads, and also shines in the studio as a warm, accurate recording mic. She is optimized as a single-source mic, but with a sweet spot from one out to 18 inches, she does great capturing voice and instrument together for solo or even two performers.

SUGGESTED APPLICATIONS

On stage and in studio for vocals, close-miking acoustic instruments (guitar, mandolin, banjo, fiddle), drum overheads, electric guitar cabinets.

FEATURES:

  • Hand-made microphone with unique appearance

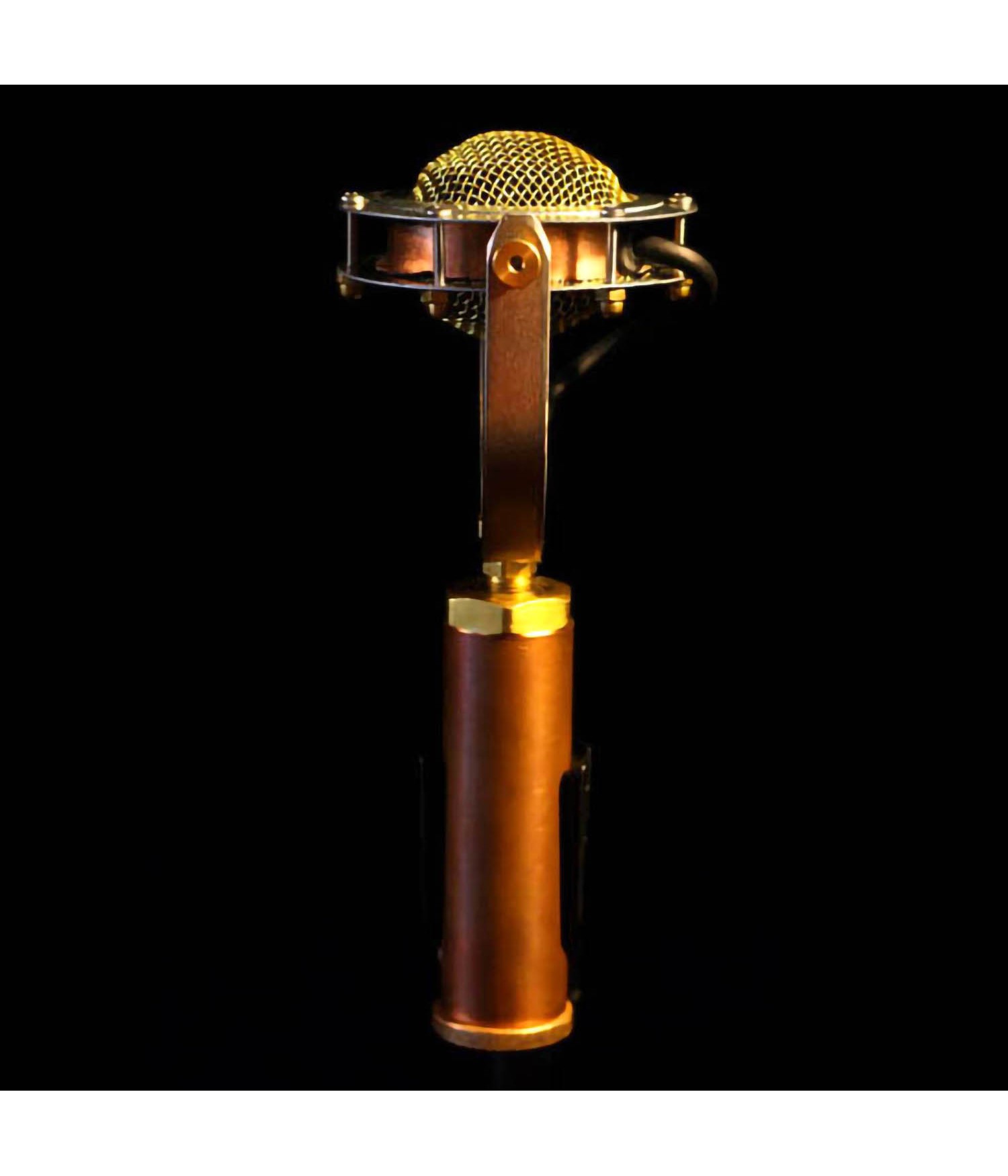

  • Side or end address, using pivoting bracket
  • Capsule and electronics tuned for close to medium distance use on the most difficult stages with excellent feedback rejection
  • Internal shock dampers for minimal handling noise
  • Integral silk and mesh pop filter, for effective control of plosives without loss of clarity
  • Transformerless FET fully balanced electronics
  • Highest quality hand-wired electronic components - film caps, precision resistors, hand tested and matched transistors, with component values tuned for the individual circuit.

TECHNICAL SPECS

  • TRANSDUCER TYPE: condenser, large (26 mm) diaphragm

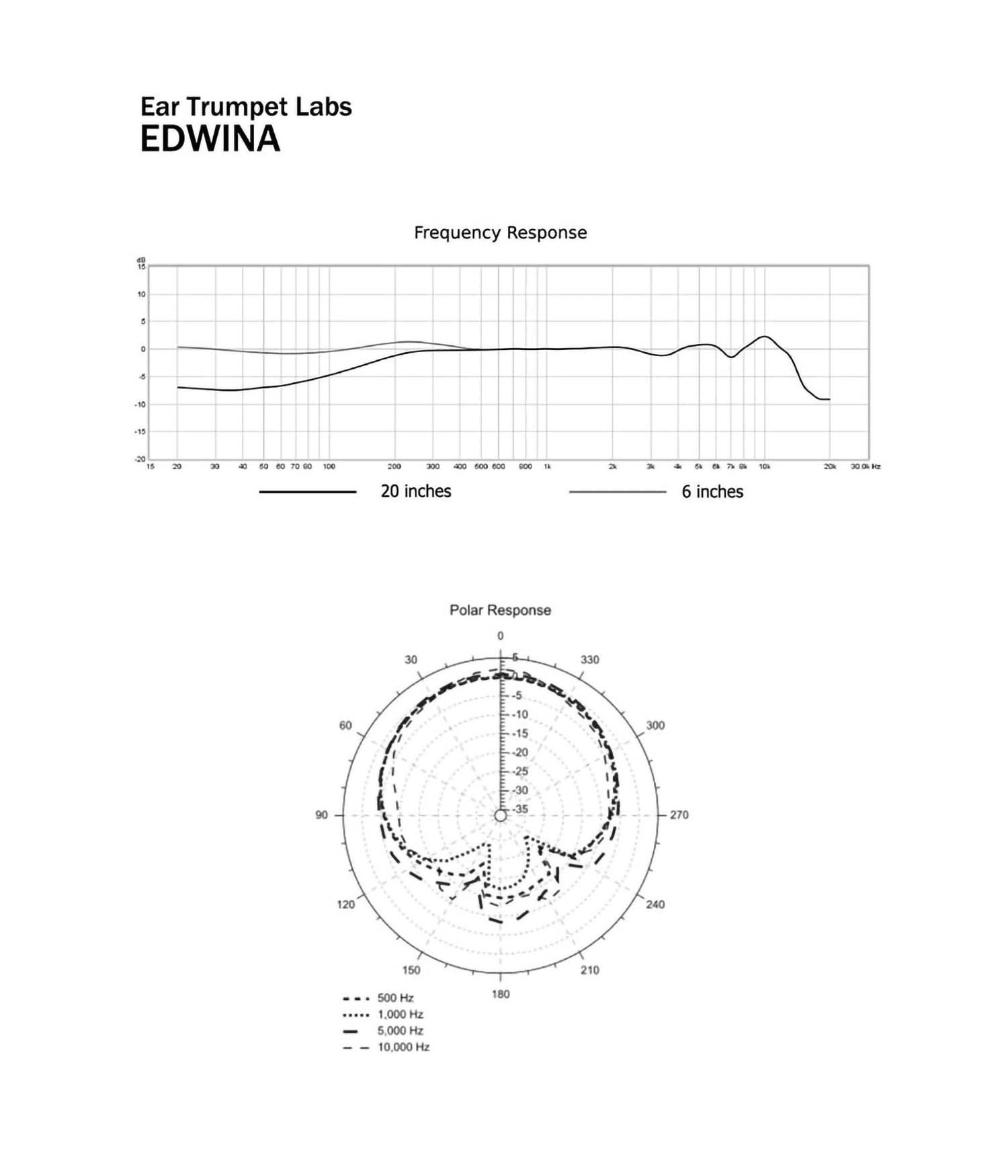

  • POLAR PATTERN: cardioid
  • FREQUENCY RESPONSE: 20 - 15K hz (-3dB)
  • SENSITIVITY: -38.9dB (11 mV/Pa)
  • OUTPUT IMPEDANCE: <50 Ohm
  • NOISE LEVEL (A-weighted): <14 dBA
  • POWER REQUIREMENT: +48V phantom power
  • WEIGHT: 454gr (1845gr cased)
  • DIMENSIONS: 222mm x 102mm x 45mm; head is 76mm in diameter

INCLUDED ACCESSORIES:

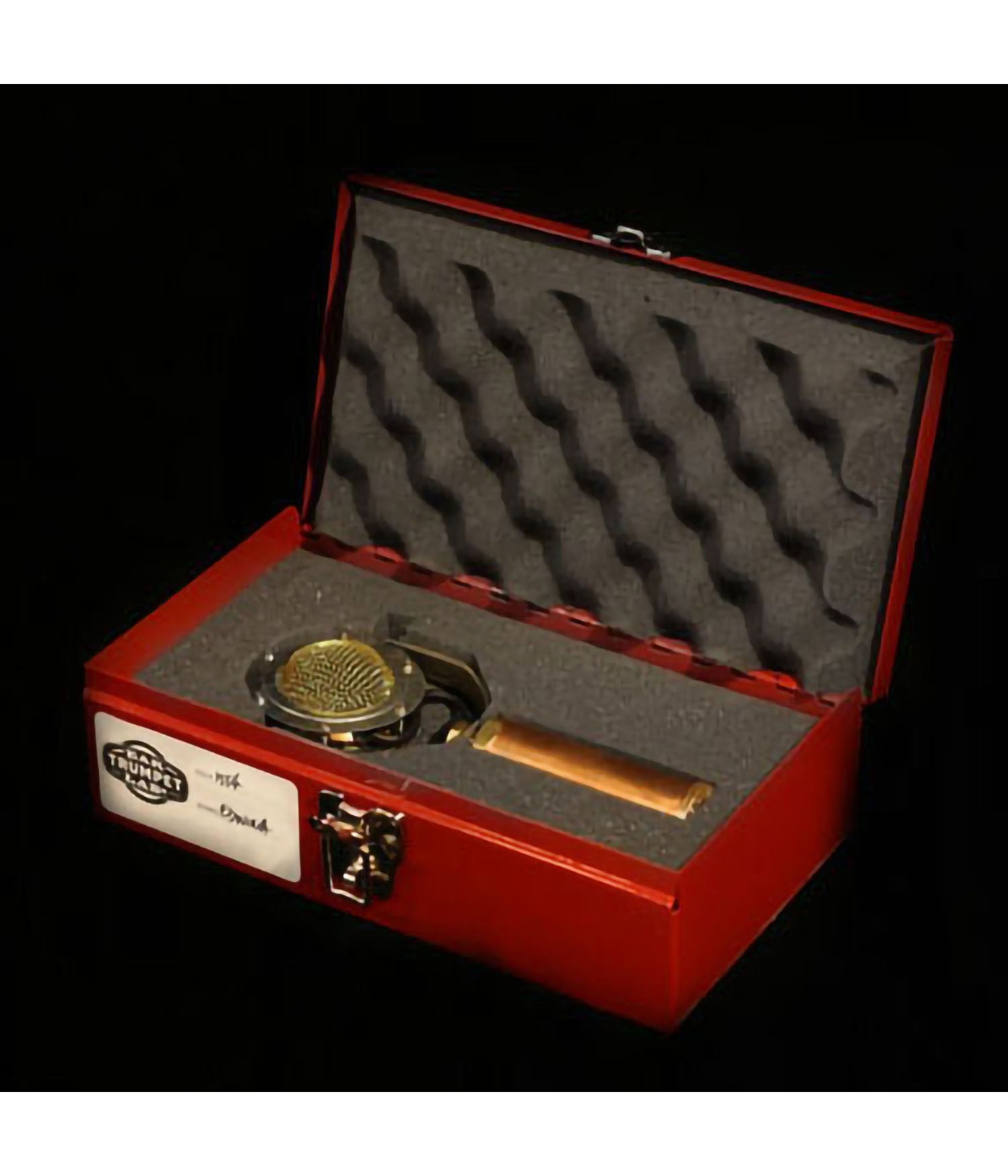

  • Metal tool case with foam padding, 280mm x 153mm x 76mm
  • Mic clip

RECOMMENDED

  • Phantom power supply - if using with a combo amp or PA without phantom power
  • Edwina pop filter - if close-miking on a large stage
  • Knit windscreen - for open-air stages and video shoots

REVIEWS:

"Lead vocals worked so well that I resisted pulling out mics that cost ten times more. That's unusual at this price point for a picky bastard like me." – Larry Crane, Tape Op

"An accomplishes large-diaphragm mic with a tight cardioid polar pattern that makes it well suited to studio close miking and live-sound applications." - Sound on Sound

"I have yet to find a source that it sounds bad on. Rather than calling it a workhorse mic, it's more like the dark horse mic!" - Recording Mag
