Electro Voice ND46 Dynamic Instrument Microphone

Features

Electro Voice ND46

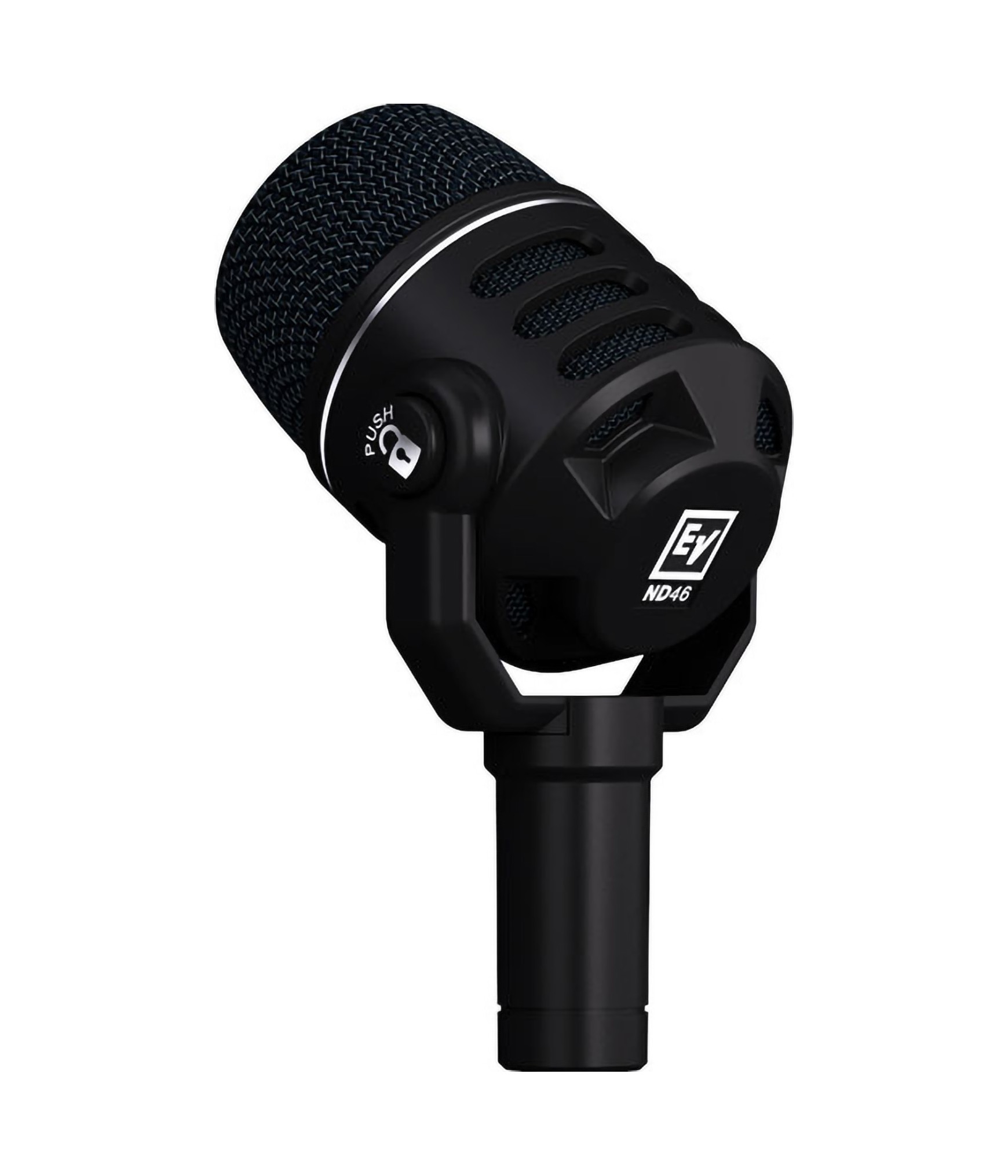

The Electro-Voice ND46 is a robust, high-performance dynamic supercardioid instrument microphone. Designed for capturing a wide variety instrument sounds, the ND46 capsule is precisely tuned to deliver a lively and balanced sound, as well as excellent isolation from the sound of other nearby instruments.

The ND46 dynamic capsule contains a large Mylar diaphragm which delivers a rich and detailed frequency response by combining its large surface area for tonal balance with its low-mass high-velocity material for exceptionally fast transient response.

The ND46 locking pivoting head makes mic placement easy and precise. Achieve ideal mic placement by pushing its button, pivoting the head into position, then releasing the button to lock the head's position. The ND46 capsule uses a humbucking coil that attenuates AC hum and electromagnetic interference. ND dynamic mics can be used with confidence near speaker cabinets and EMF generating equipment racks.

Highlights

• Excellent isolation with lively and balanced sound
• Large diaphragm dynamic capsule creates a rich and detailed frequency response
• Easy mic placement with locking pivoting head
• Humbucking coil guards against line hum
• Memraflex grille resists denting

Features:

• Capsule: Dynamic Magnetic Structure Neodymium
• Frequency response: 70hz - 18 kHz
• Polar Diagram: Supercardioid
• Sensitivity, Open Circuit Voltage @ 1 kHz: 2.4 mV/Pascal
• SPL Maximum: >140 dB
• Polarity: Pin 2 Positive, reference to pin 3 with positive pressure on the membrane
• Impedance: 350 ? Balanced (low-z)
• Microphone connector: XLR, 3-pin
• Finish: Black polyurethane paint
• Material: Die-cast zinc handle, ABS polycarbonate capsule, Memraflex grid
• Weight: 309 g
• Accessories Included: 1x Soft case, 1x Stand clip, 1x Adapter with European thread

EAN 800549805391
