Lollar Strat 5-Way Blender Pre-Wired Kit - Luxe .047

Lollar Pickups

Ref LS5WBPWKL47
Highest quality pre-wired kit hand wired to Jason Lollar's specifications, with Blend control
€127.05

Features

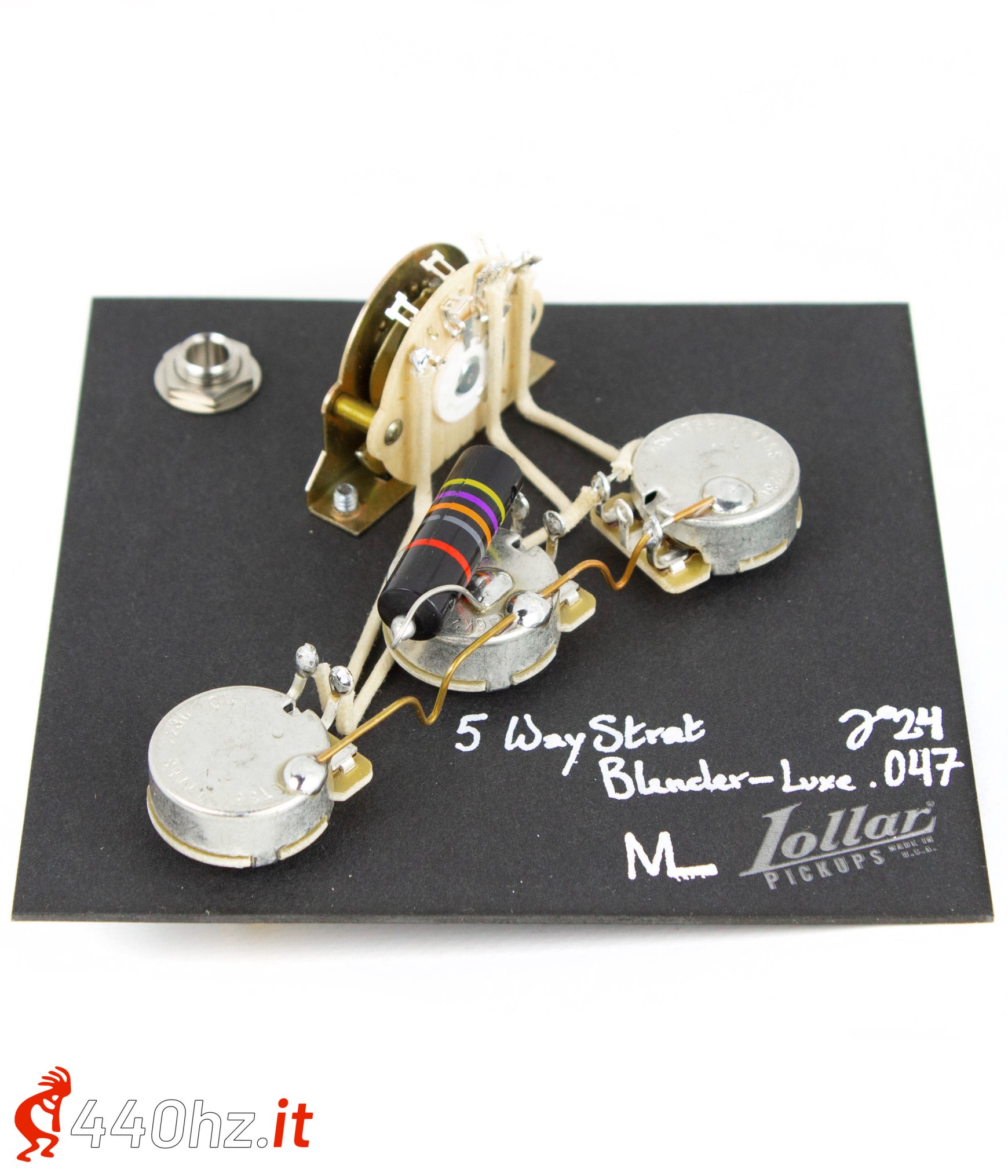

Lollar 5-Way Stratocaster Blender Pre-Wired Kit

By replacing the rear tone pot with a pickup blend control this pre-wired kit incorporates a popular mod for Strats which allows you to blend in either the neck, or bridge pickup, with the other pickups in certain combinations on your 5-Way switch.

Includes:

  • Wiring Diagram
  • CTS 250k Split Shaft Potentiometers w/.375" (3/8") Shaft Length
  • 5-Way Switch
  • Switchcraft 1/4" Mono Output Jack
  • Luxe Paper-in-Oil Capacitor

Control Layout:

  • Master Volume
  • Master Tone
  • Blender Pot
  • 5-Way Switch

Switch & Blender Pot Function:

With Blender Pot on 10
Position 1: Bridge
Position 2: Bridge and Middle
Position 3: Middle
Position 4: Middle and Neck
Position 5: Neck

With Blender Pot on 1
Position 1: Bridge, with Neck pickup faded in
Position 2: Bridge and Middle, with Neck pickup faded in
Position 3: Middle
Position 4: Middle and Neck, with Bridge pickup faded in
Position 5: Neck, with Bridge pickup faded in

Capacitor Value

  • .047µF rolls off the most top end when your tone pot is turned down

More About Our Pre-Wired Kits

Our kits are hand-wired by Lollar Pickups in the USA to Jason Lollar's preferred specifications. They feature Lollar spec'd CTS potentiometers with a special taper for an even range of volume and tone adjustment. With high-quality switches for superior reliability and longevity, and your choice of Orange Drop Poly Film-in-Foil or Luxe Paper-in-Oil capacitors wired with 22 AWG vintage push-back wire for that vintage look and sound.

*THESE KITS ARE BUILT WITH THE CONTROLS SPACED TO FIT STANDARD USA FENDER-STYLE STRATOCASTERS. CONTROLS ON IMPORT GUITARS MAY BE SPACED DIFFERENTLY
