Palmer PAN04 Passive DI Box 2 Channels

Features

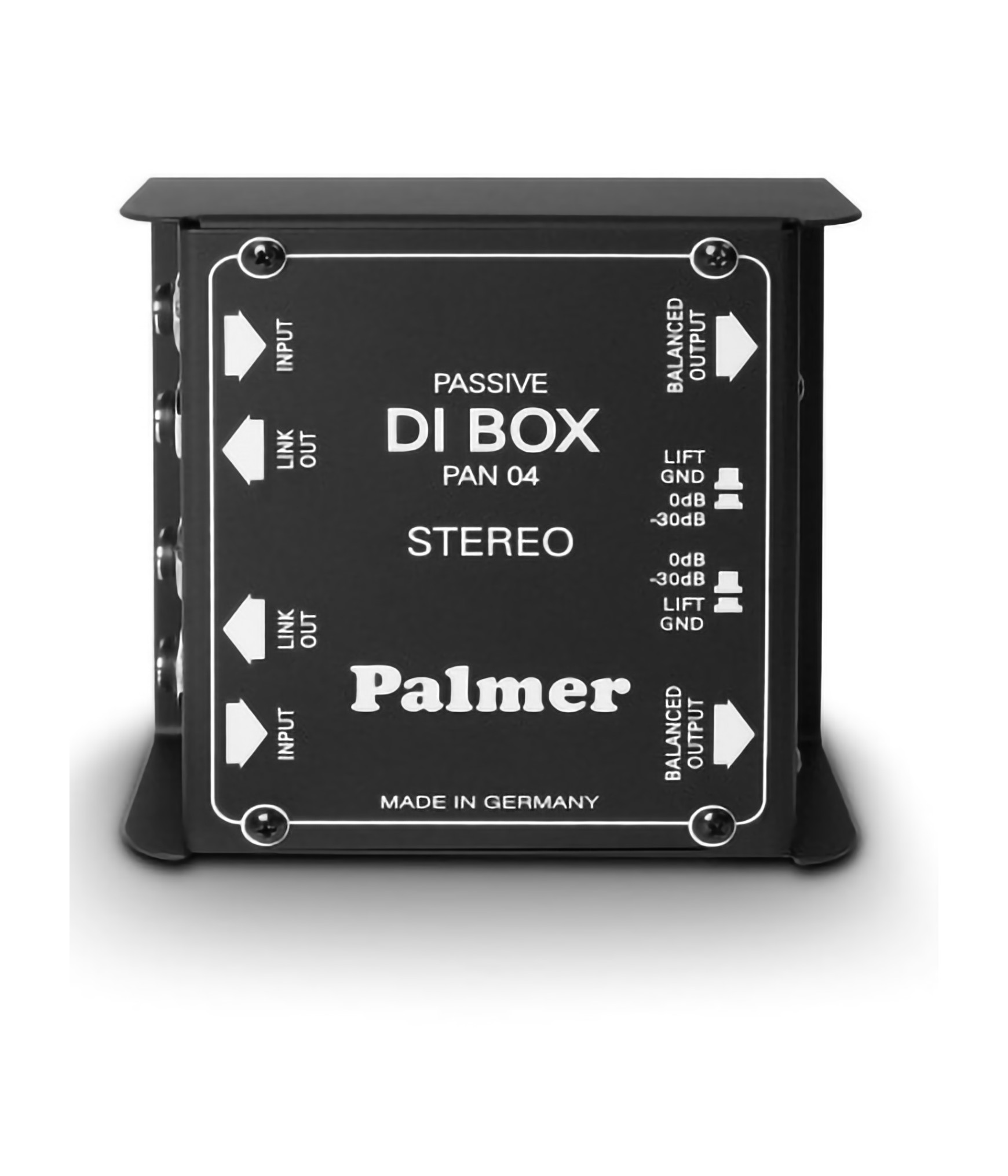

Palmer PAN04

Passive Stereo DI Box, 2 Channels

The Palmer PAN-04 is a professional 2-channel passive DI box, designed to deliver maximum reliability, excellent sound quality, and ease of use in live sound, recording studios, and fixed audio installations. It combines the dual core of the PAN01 in a single enclosure, offering a stereo configuration that makes it ideal for keyboards, sound modules, media players, and devices with multiple outputs.

Thanks to its transformer-balanced design and high signal-handling capability (maximum input level up to +54 dBu), the PAN04 ensures clean and stable signal transmission while minimizing noise and interference. The 0 / -30 dB input pad and Ground Lift switch provide optimal signal control in any situation.

The rugged metal chassis guarantees durability and long-term reliability, making the Palmer PAN04 a dependable solution for intensive professional use.

Highlights

• Professional 2-channel passive DI box (stereo)
• Ideal for keyboards and multi-output audio sources
• Transformer-balanced for clean and stable signal
• High maximum input level (+54 dBu)
• 0 / -30 dB attenuation pad
• Ground Lift to eliminate hum and ground loops
• XLR and 6.3 mm jack outputs
• Rugged metal construction for live and studio use

Technical Specifications

• Product type: Passive DI box
• Channels: 2
• Inputs: 2
• Input connections: 6.3 mm jack
• Maximum input level: +54 dBu
• Input impedance: 60 kΩ
• Input attenuation: 0 / -30 dB
• Outputs: 2
• THRU outputs per channel: 1
• Output connections: 6.3 mm jack, XLR
• Maximum output level: +4 dBu
• Output impedance: 600 Ω
• Frequency response: 10 Hz – 40,000 Hz
• Transformer balanced: Yes
• Transmission ratio: 10 : 1
• Controls: Attenuation, Ground Lift
• Housing material: Metal
• Dimensions: 110 × 110 × 45 mm
• Weight: 0.419 kg
