Proel PLMD030 Truss Duo Mt 3 Flat

Features

Proel PLH420

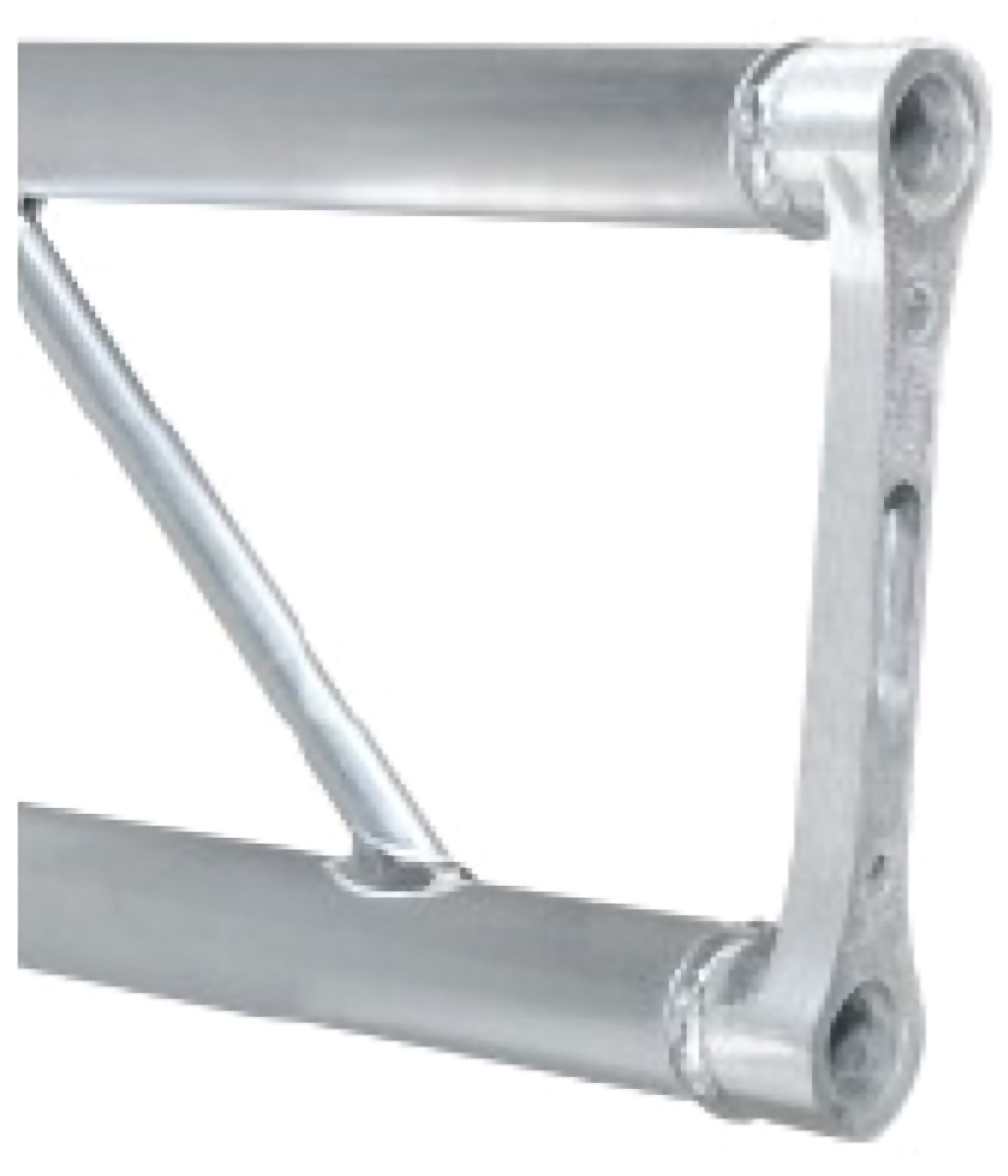

The structure is made of extruded aluminum p-al-mg-s with 50 mm diameter and 2 mm thick running tubes. the internal diagonals are continuous wire with extruded aluminum 6060 hb 60, with 12 mm diameter and 1.5 mm thickness. the terminals (plate) are cast aluminum en az 47000. the continuous rib solution makes the structure attractive and allows it to be used even in small rooms. the 25 cm flat section truss has two types of connections: a quick one with ogive, pins and springs (pldset02plus) , the other with screws and nuts (pldset01).

Features:

• Length:300 cm
• Type: flat section structure
• Diagonal tube dimensions: Ø 12x1.5mm
• Current tube dimensions:Ø 50x2 mm
• Side:25 cm

EAN 8032496154075
